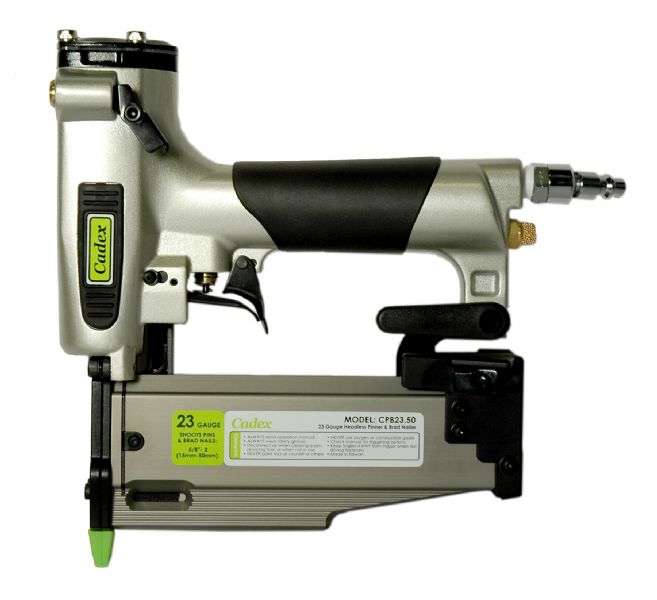

Cadex CPB23.50 23 Gauge Headless Pin Nailer, 1/2" to 2"

Box Count
Cadex CPB23.50 23 Gauge Headless Pin Nailer, 1/2" to 2" CPB23.50

Box Count: 1

**This Item No Longer Available**
Free Shipping
Product Overview

The Cadex CPB23.50 23 gauge pin nailer drives headed and headless pin nails ranging from 1/2" to 2" in length. Includes one-year manufacturer's warranty. Comes complete with swivel air fitting. Cadex tools are designed for the most demanding professionals. The CPB23.50 features a lightweight and well balanced powerful design for maximum comfort and penetration into hardwoods.

Additional features include an auto-adjust fastener mechanism for different fastener lengths, lock-out to prevent dry firing, handy belt hook, double trigger safety, rear exhaust with silencer, removable no mar rubber tip, comfortable rubber grip, and built-in blow gun to keep work surface clean. This Cadex 23 gauge pin nailer is excellent for rattan furniture production, light wood assembly, finish and trim work, decorative trim, picture frame assembly, window beading, craft work, displays and more.

WARNING: California residents, this item qualifies for Proposition 65 legislation.
Related Fasteners Specifications
  • Box Count 1
  • SKU CPB23.50
  • UPC 848852012020
  • Power Type Pneumatic
  • Collation Type Glue
  • Gauge 23 Gauge
  • Brand Cadex
  • Maximum Fastener Length 2"
  • Condition New
  • Case/Bag Included Yes
  • Included In Box Belt Hook, Cushion Grip, No-Mar Tip
  • Manufacturer's Warranty One-Year Limited
  • Item Width 2-19/50"
  • Special Features Belt Hook, Cushion Grip, No-Mar Tip
  • Item Height 8-4/5"
  • Item Length 9-1/5"
  • Magazine Capacity 120
  • Country of Manufacture Taiwan
  • Item Weight 2.60 lbs.
  • Usage Type Interior
  • Minimum Fastener Length 1/2"
  • Housing Material Aluminum
  • Operating Pressure 70 to 100 PSI
  • Firing Type Double Trigger
  • Air Inlet Size 1/4" NPT
  • Depth Control No
  • Power Source Air
  • Special Offer Available No
  • Magazine Type Strip
  • Fastener Type Headless Micro Pin

Product Questions

Does this gun come with a case?
Customer Reviews
  1. Don’t waste your money
    I bought this gun because I was getting tired of replacing the ones that cost around $100.00 every year and a half. So I bit the bullet and spent $270.00 on this P.O.S. It lasted around 3 1/2 months of light use. After shooting around 400 nails it jammed. No prob. I fixed the jammed nail. Shot a few hundred more nails then it stopped driving the nails all the way. The nail go about 3/4 of the way in and stop.
