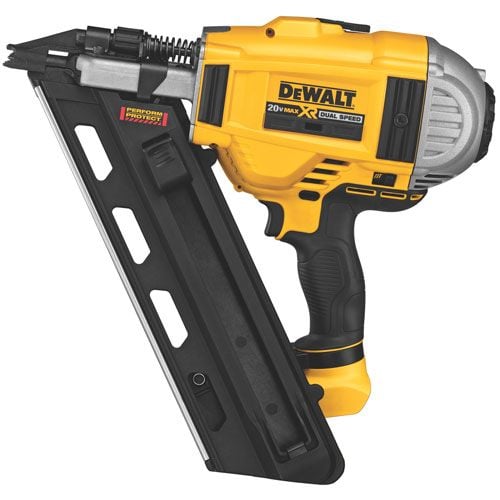

Dewalt DCN692B 20V Li-Ion Cordless Framing Nailer, 2" to 3-1/2"

Box Count
1
SKU
DCN692B
$389.00
FREE SHIPPING
Dewalt DCN692B 20V Li-Ion Cordless Framing Nailer, 2" to 3-1/2" DCN692B

Box Count: 1

$25 REBATE APPLIED TO PRICE SHOWN - REG $414 See More WHILE SUPPLIES LAST. CANNOT COMBINE OFFERS. PARTICIPATING ITEM ONLY.
$389.00
Qty:
$25 REBATE APPLIED TO PRICE SHOWN - REG $414 See More WHILE SUPPLIES LAST. CANNOT COMBINE OFFERS. PARTICIPATING ITEM ONLY.
In Stock,Subject To Manufacturer Availability This item is shipped directly from the manufacturer to you
Qty:
$25 REBATE APPLIED TO PRICE SHOWN - REG $414 See More WHILE SUPPLIES LAST. CANNOT COMBINE OFFERS. PARTICIPATING ITEM ONLY.
In Stock,Subject To Manufacturer Availability This item is shipped directly from the manufacturer to you. In the event there is a delay in shipping due to availability, We will contact you via email within one business day of your order being placed.
Free Shipping
Product Overview

The Dewalt DCN692B 20V Max XR lithium ion cordless framing nailer, item #DCN692B, drives 2" to 3-1/2" 33 degree clipped head, paper tape framing nails. Operating on Li-Ion battery power only  (no fuel cells required), upgrades to the DCN692B over the previous generation Dewalt DCN690 cordless framing nailer, include a dual speed brushless motor, to assist in driving different nail lengths. This Dewalt cordless framing nailer provides consistent nail penetration into both soft and hard joints. A sequential operating mode allows for precision placement, while a bump operating mode provides the user with production speed. Other features include an easy to remove, impact resistant top cap, integrated belt hook, and a Trigger Lock-off to disable the trigger when not in use. The Dewalt DCN692B cordless framing nailer is recommended for framing, trusses, subflooring, decking, sidewall sheathing, and wood to green concrete applications. This tool comes with a manufacturer's three-year limited warranty. This item DOES NOT INCLUDE battery pack and charger (sold separately). The DCN692B is a direct replacement for the Dewalt DCN690B.

WARNING: California residents, this item qualifies for Proposition 65 legislation.
Related Fasteners Specifications
  • Box Count 1
  • SKU DCN692B
  • UPC 885911349000
  • Power Type Pneumatic
  • Collation Type Paper Tape Strip
  • Application Type Framing, Sheathing, Subfloor
  • Brand DeWalt
  • Maximum Fastener Length 3-1/2"
  • Condition New
  • Battery Type 20V Lithium Ion
  • Case/Bag Included No
  • Manufacturer's Warranty Three-Year Limited, One-Year Free Service From Dewalt
  • Item Width 4-7/10"
  • Special Features Dry Fire Lock, Duel-Speed Motor
  • Item Height 13-3/4"
  • Item Length 16"
  • Magazine Capacity 55
  • Country of Manufacture Taiwan
  • Item Weight 9.1 lbs.
  • Usage Type Interior, Exterior
  • Minimum Fastener Length 2"
  • Housing Material Plastic, Other Materials
  • Firing Type Selective
  • Product Type Nailer
  • Depth Control Yes
  • Power Source Battery
  • Special Offer Available No
  • Diameter Range .113" to .131"
  • Product Degree/Angle 30-34 Degree
  • Magazine Type Strip
  • Fastener Type Framing Nail
