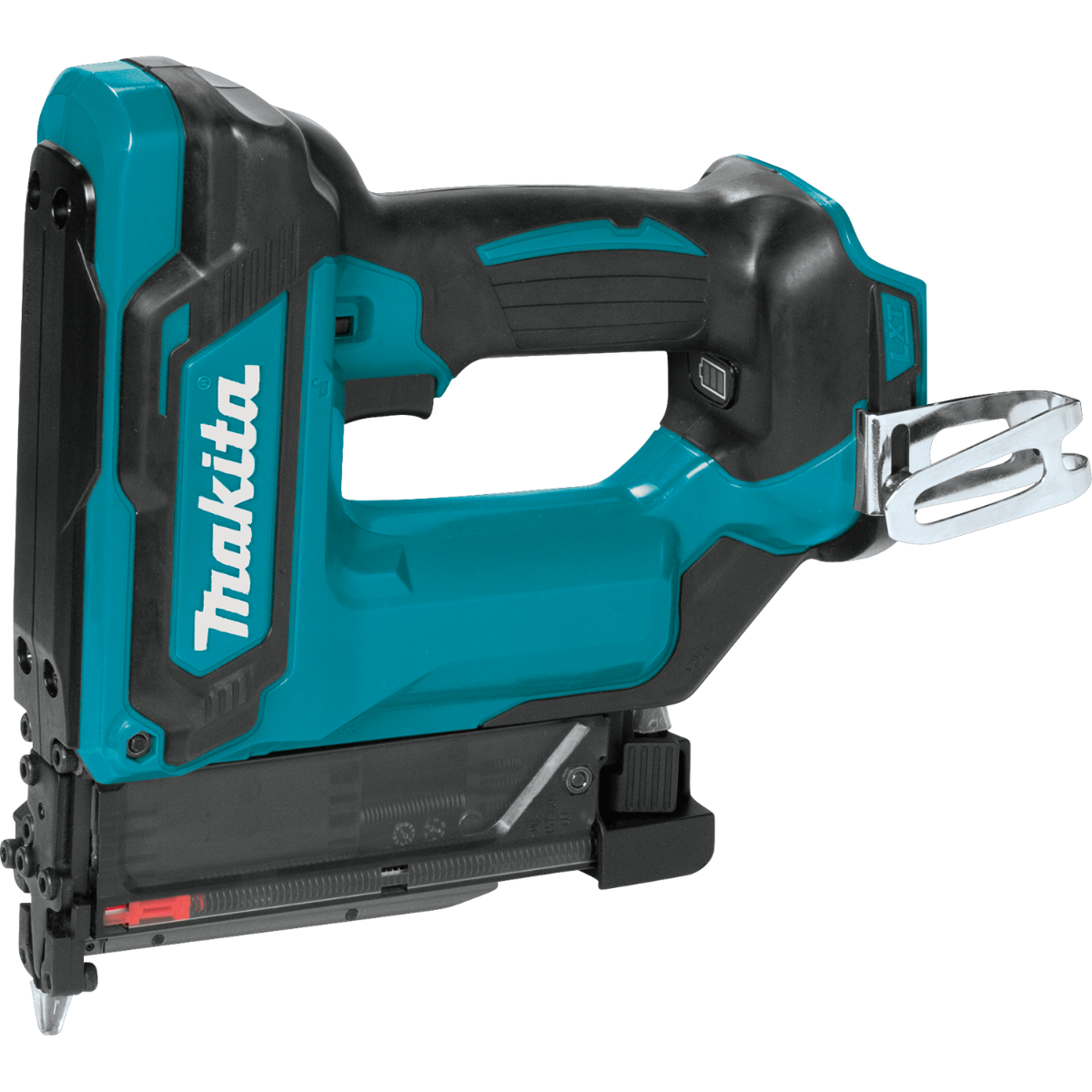

Makita XTP02Z 18V LXT Cordless 23 Gauge Pin Nailer (Bare Tool), 5/8" - 1-3/8"

SKU#: XTP02Z
BOX COUNT: 1

$249.00

FREE
SHIPPING
QTY:12345678910111213+
Add to Cart

YOU MAY ALSO LIKE

SKU#:P6/15-2.5Micro Pin 5/8" Leg 23 GaugeBox count: 2500

$7.25

QTY:12345678910111213+
Add to Cart
SKU#:P6/15-STMicro Pin 5/8" Leg 23 Gauge Stainless SteelBox count: 5000

$20.95

QTY:12345678910111213+
Add to Cart
SKU#:P6/20-2.5Micro Pin 3/4" Leg 23 GaugeBox count: 2500

$8.35

QTY:12345678910111213+
Add to Cart
SKU#:P6/25-2.5Micro Pin 1" Leg 23 GaugeBox count: 2500

$9.50

QTY:12345678910111213+
Add to Cart
VIEW MORE

PRODUCT OVERVIEW

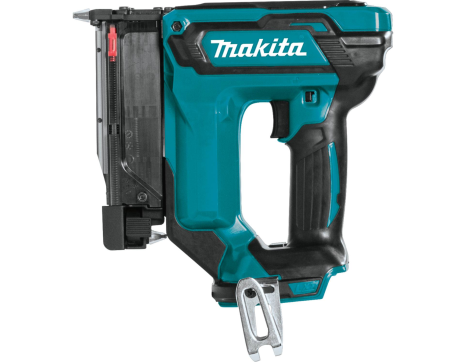

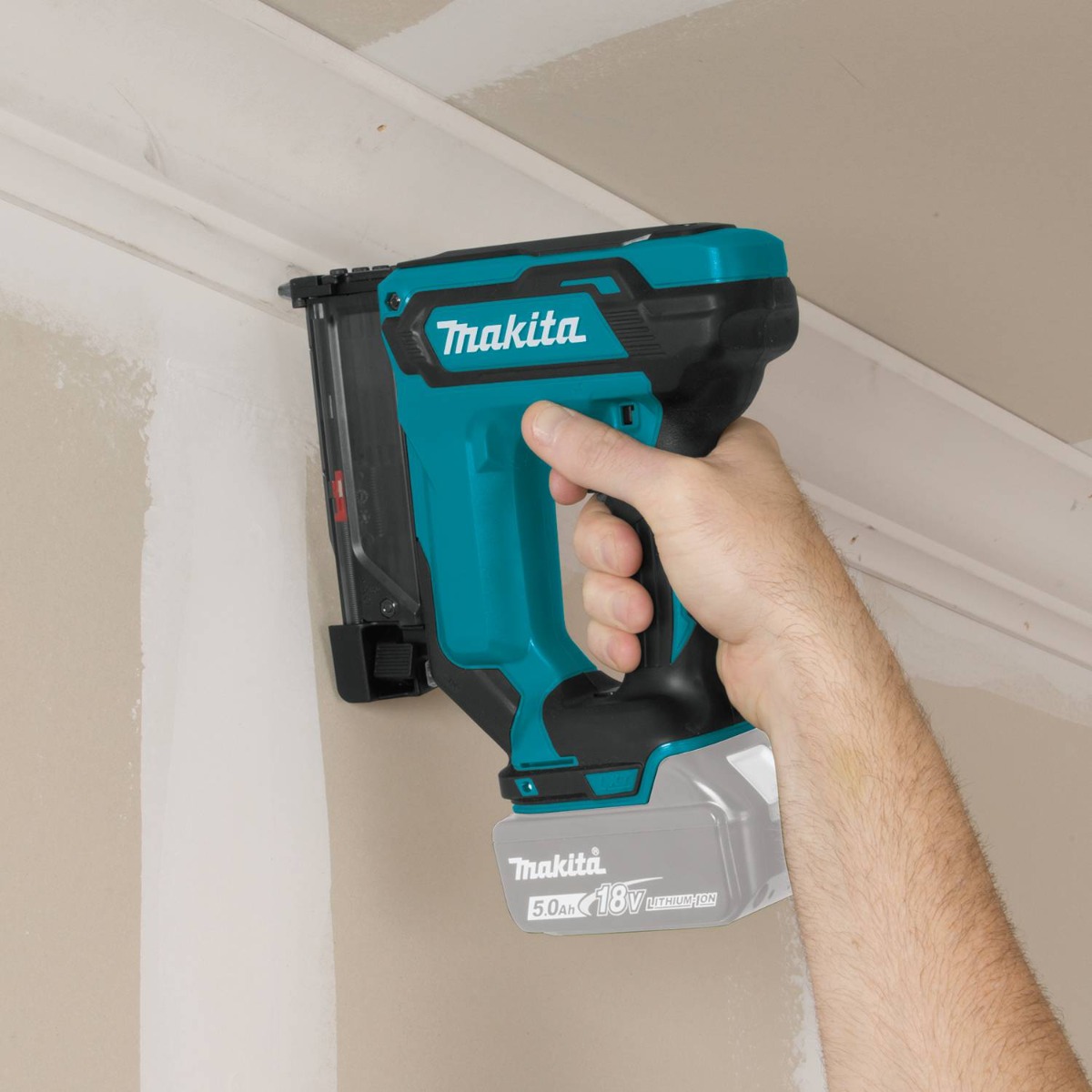

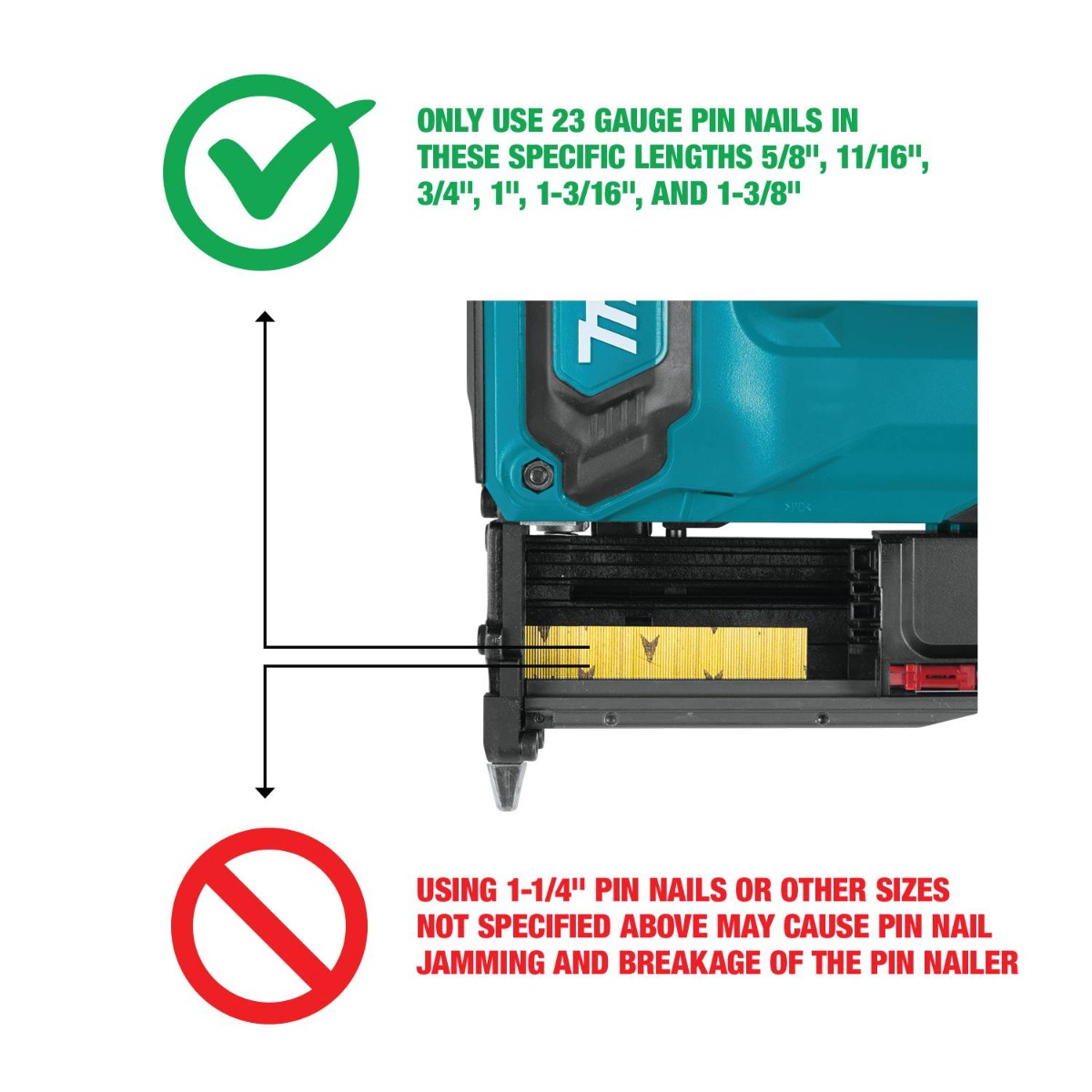

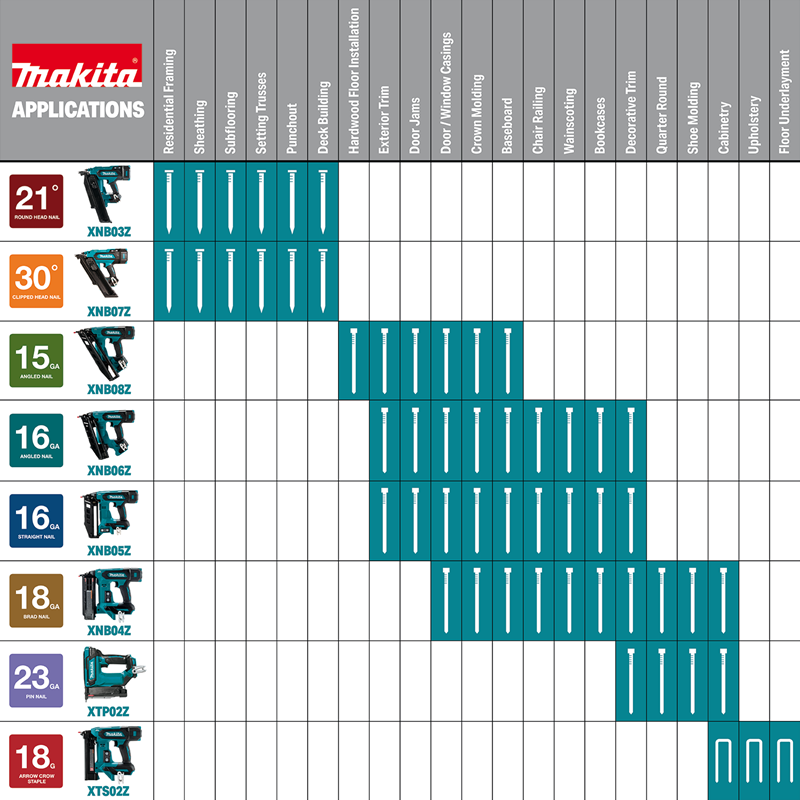

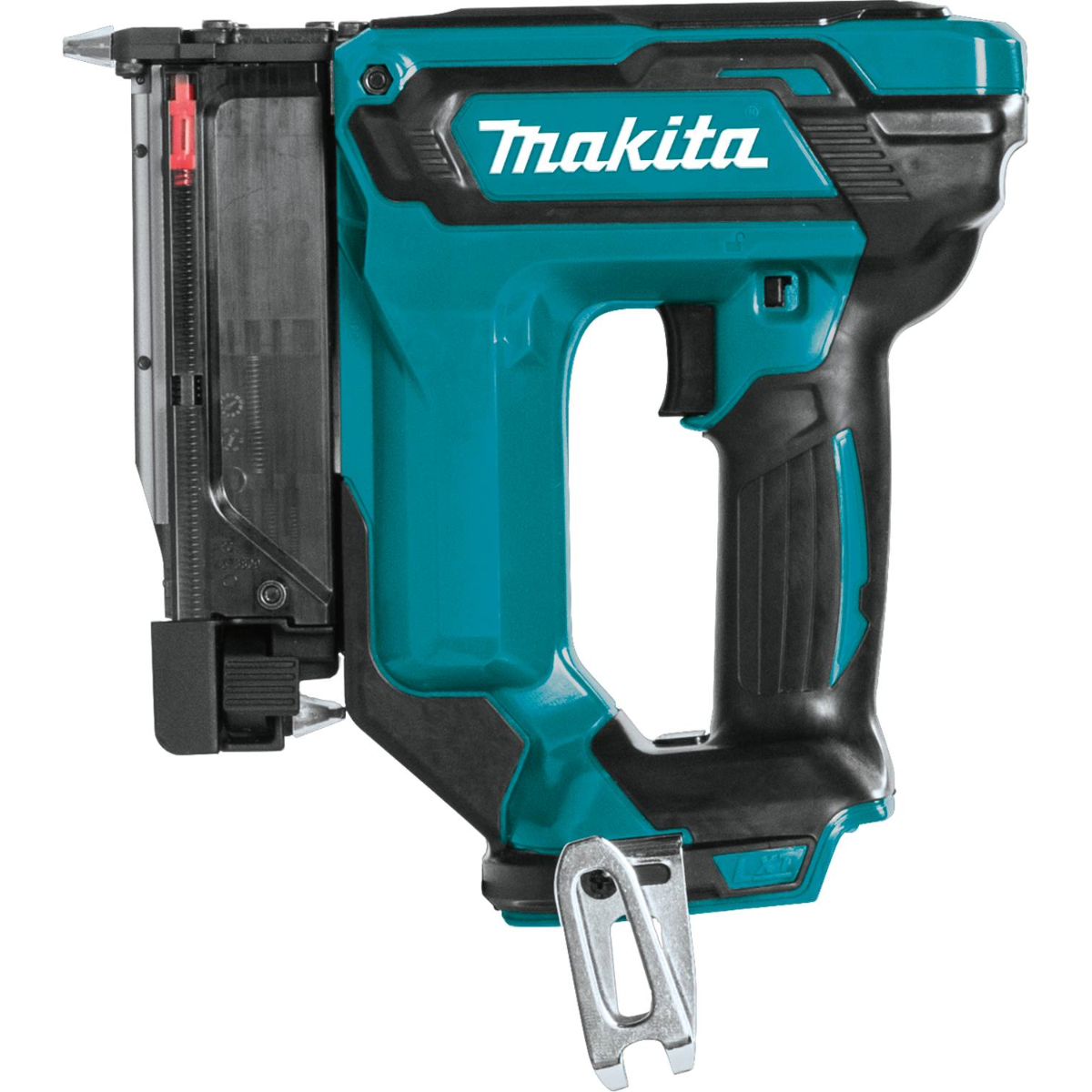

The Makita XTP02Z 18V LXT 23 Gauge Pin Nailer is a high-performance, cordless tool. This specialized tool drives 23 gauge headless pin nails, leaving nearly invisible holes that can easily be painted over. The XTP02Z is designed to drive the following six different pin lengths: 5/8”, 11/16", 3/4", 1", 1-3/16", 1-3/8" (excluding 1-1/4" pins). This tool is compact and extremely lightweight, with an ergonomic design ideal for professionals. Built for endurance and efficiency, it fires up to 5,300 pins per charge when paired with an 18V LXT 5.0Ah battery. Common applications include decorative trim, finishing work, quarter round and cabinetry.

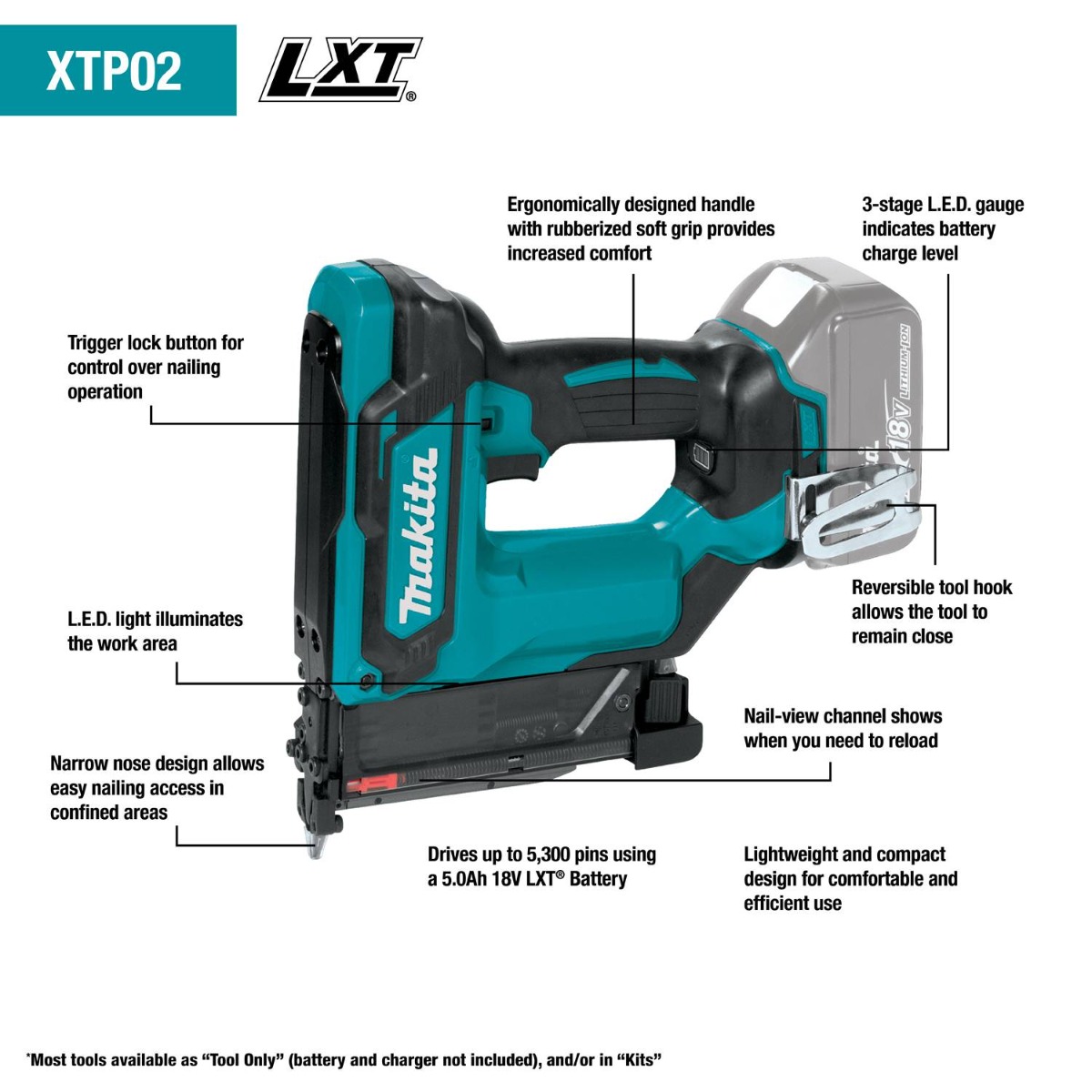

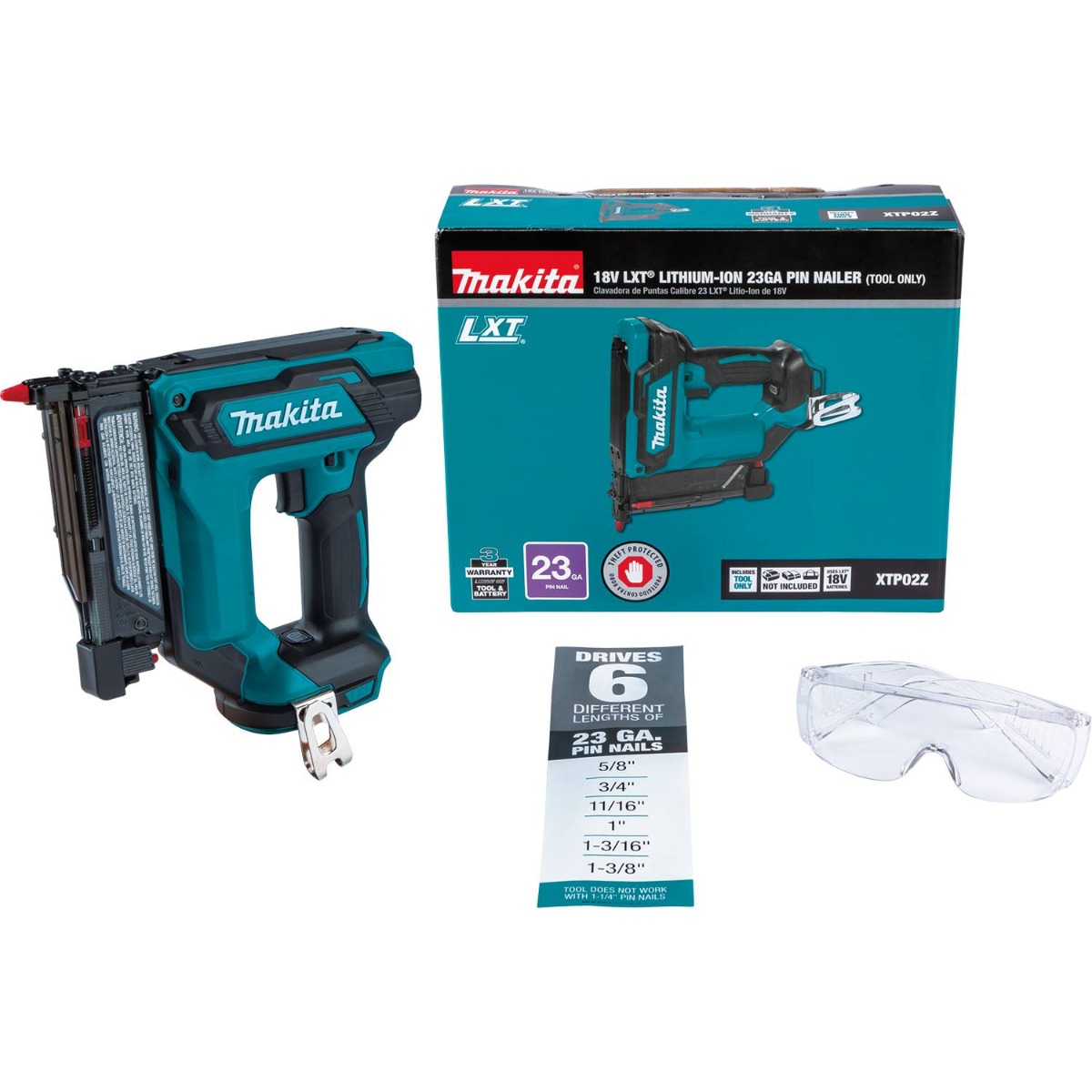

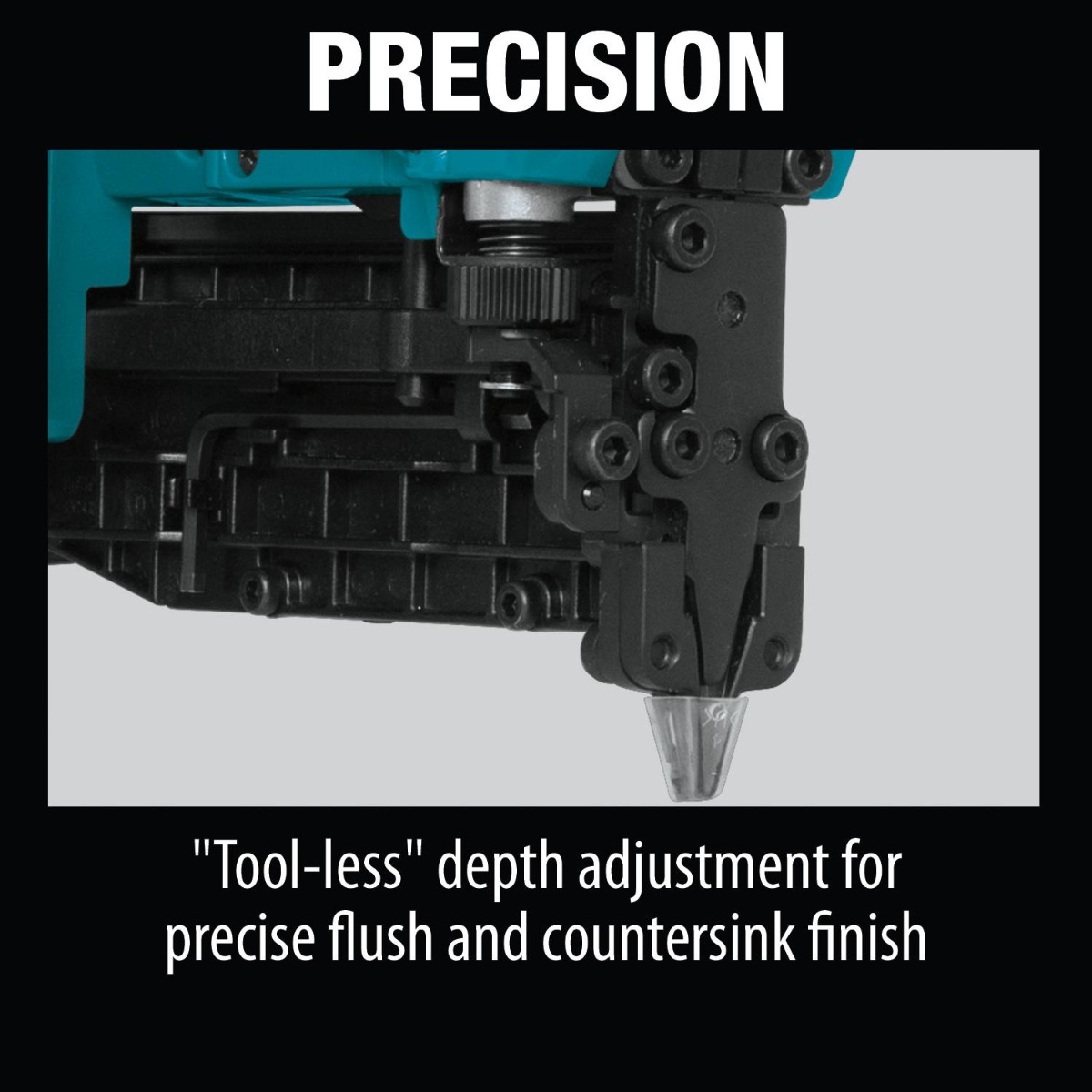

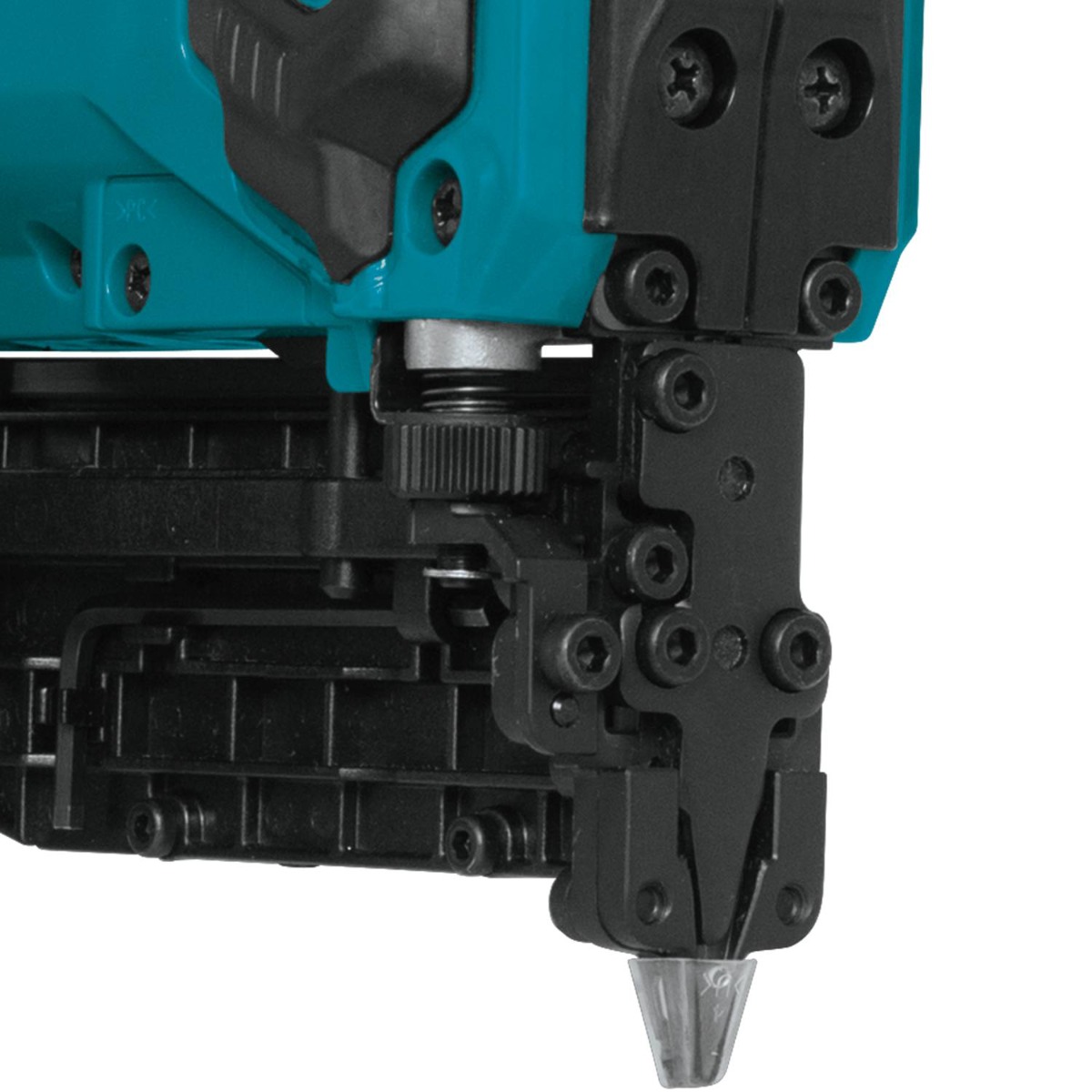

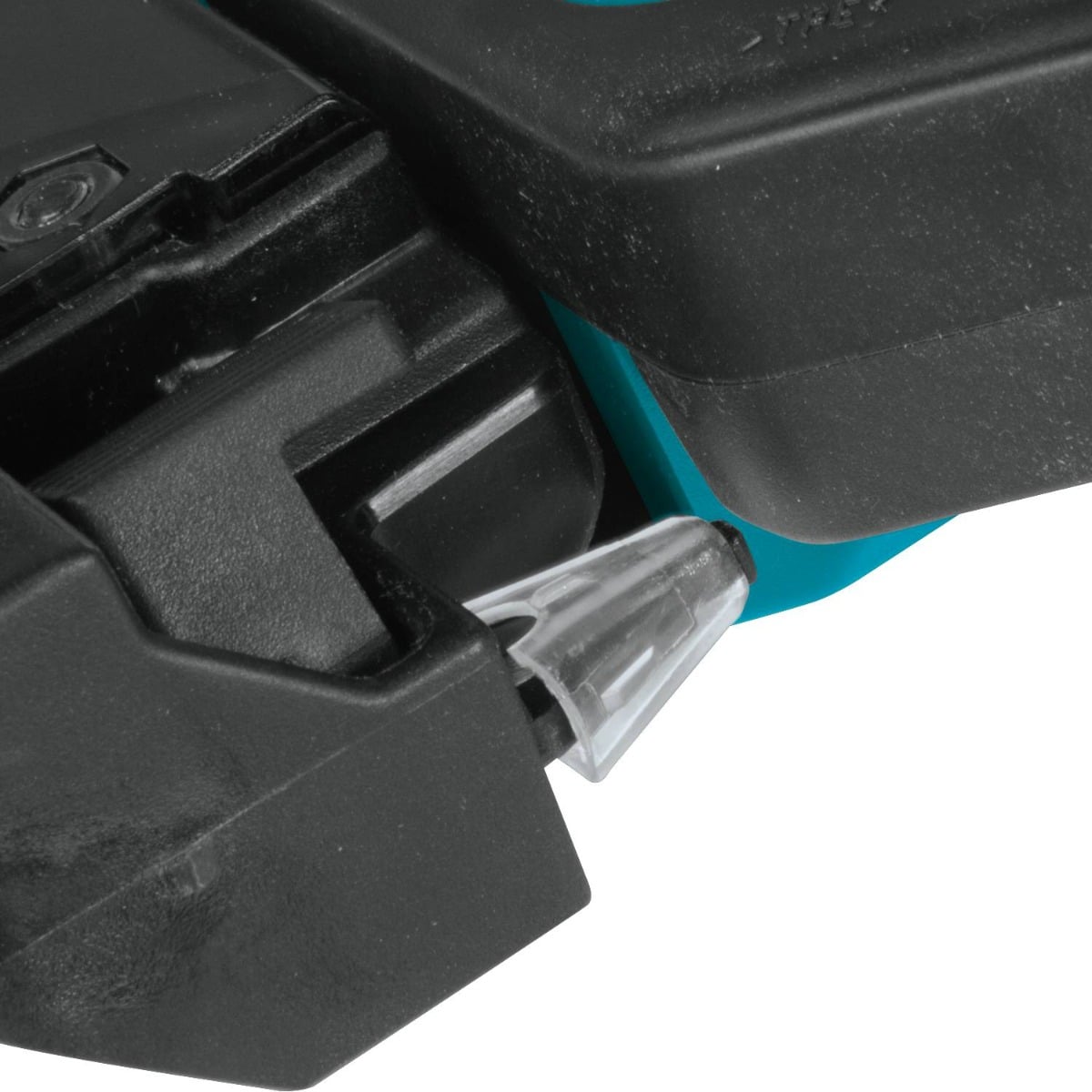

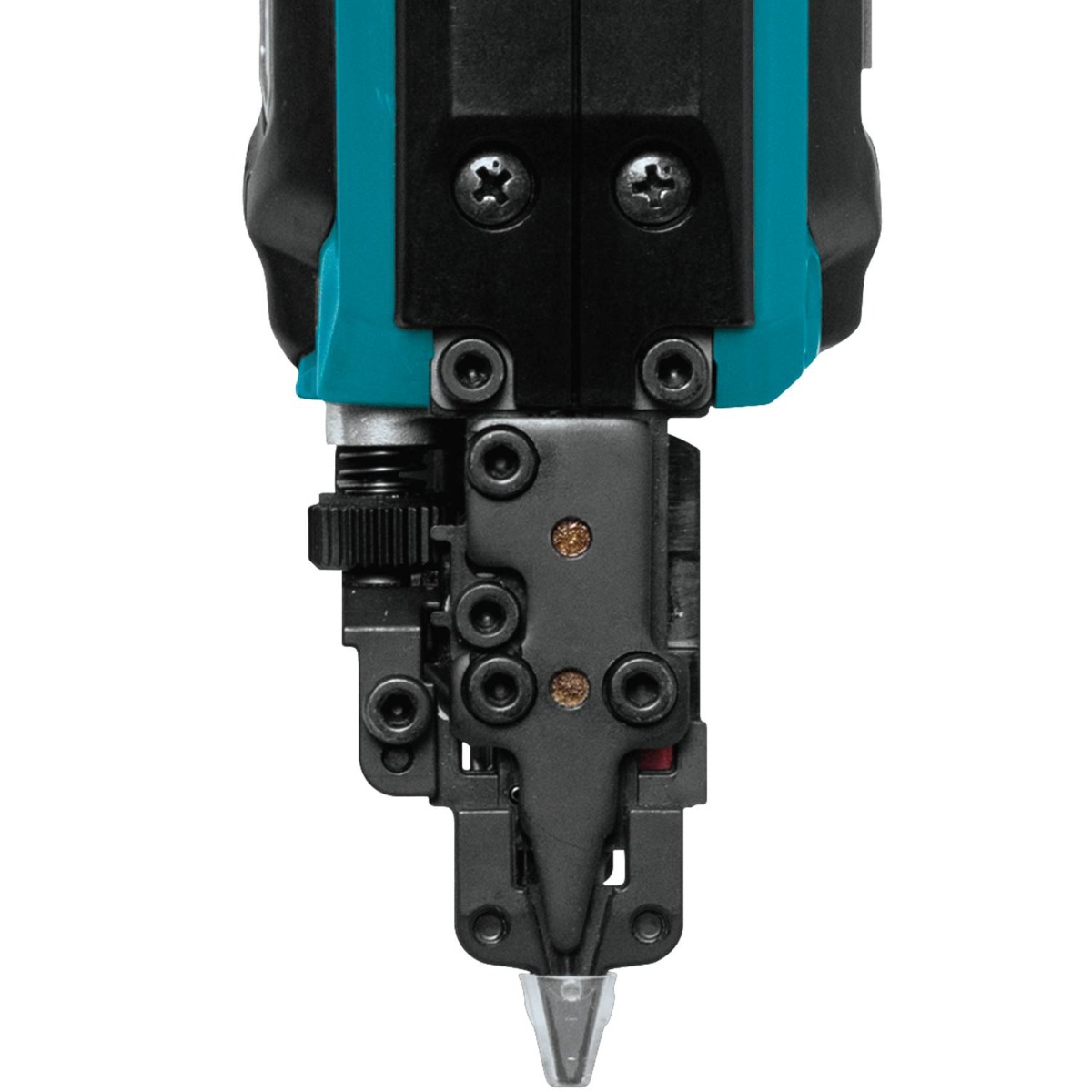

Engineers have equipped this 23-gauge pinner with premier features. The XTP02Z tool includes an anti-dry fire mechanism, tool-less depth adjustment, a reversible tool hook, and 3-stage LED battery indicator. A key feature for the XTP02Z pin nailer is its refined firing mechanism which reduces recoil and the force required to seat each pin. The XTP02Z pinner is designed with a narrow nose for tight corners and rubber bumpers to prevent surface marring. Its Star Protection Computer Controls protect against overloading, over-discharging and overheating. Packaged ideally for professionals, it includes a belt clip, two no-mar tips, safety glasses and a hex wrench. As part of the 18V LXT system, Makita’s XTP02Z is a great addition for professionals and DIYers seeking performance and durability. Purchase the Makita XTP02Z 18V LXT 23 Gauge Pin Nailer today from Nail Gun Depot!

SPECIFICATIONS
ResourcesBox Count
1
SKU
XTP02Z
UPC
088381835404
Power Type
Cordless
Gauge
23 Gauge
Application Type
Finish and Trim, Cabinetry
Brand
Makita
Maximum Fastener Length
1-3/8"
Condition
New
Battery Type
Lithium-Ion
Product Color
Blue, Black
Case/Bag Included
No
Included In Box
2 No-mar Tips, Belt Clip, Safety Glasses, Hex Wrench
Manufacturer's Warranty
Three-Year Limited
Item Width
3-1/8"
Special Features

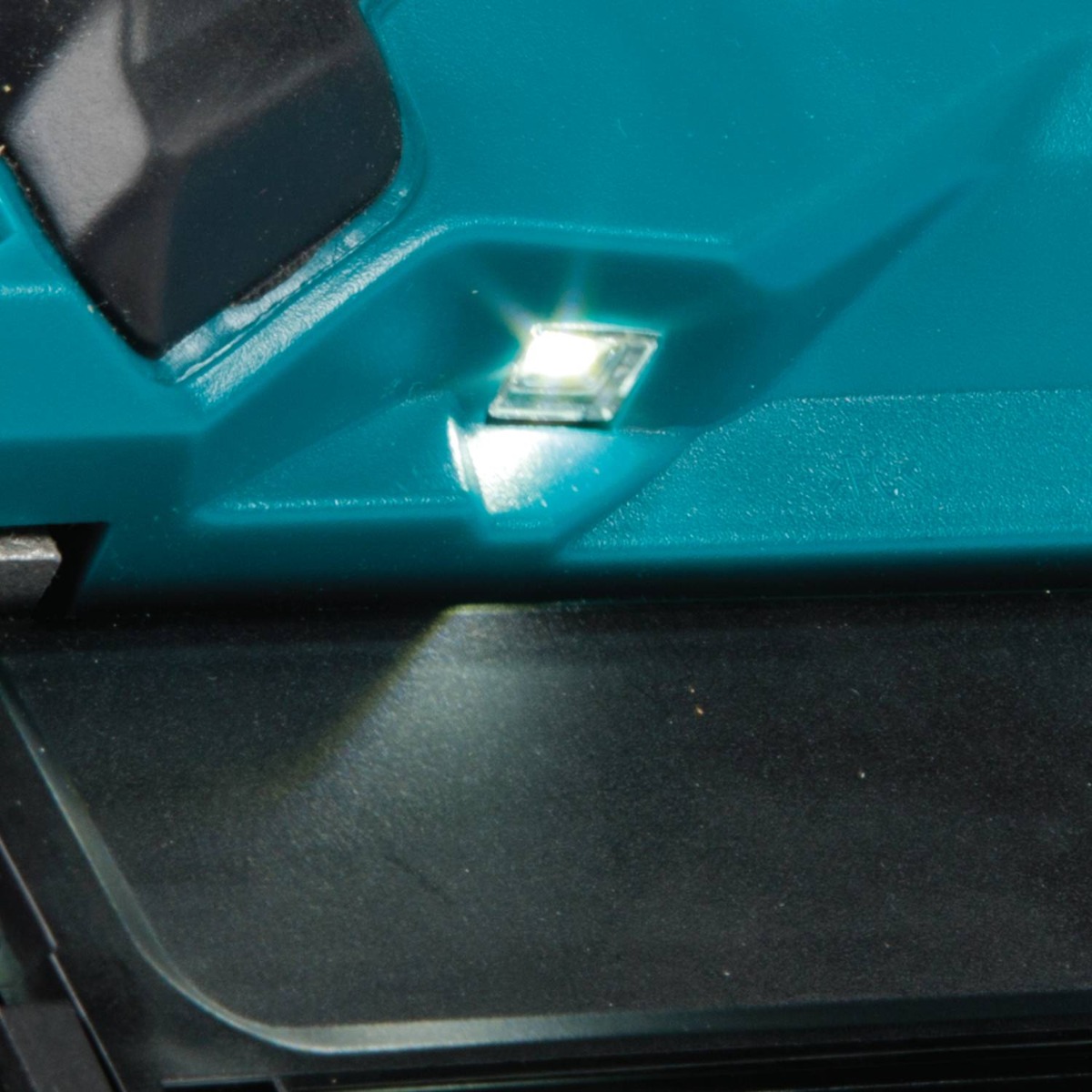

Anti-Dry Fire, No-mar Nose, LED Light
Item Height
8-7/8"
Item Length
10-1/8"

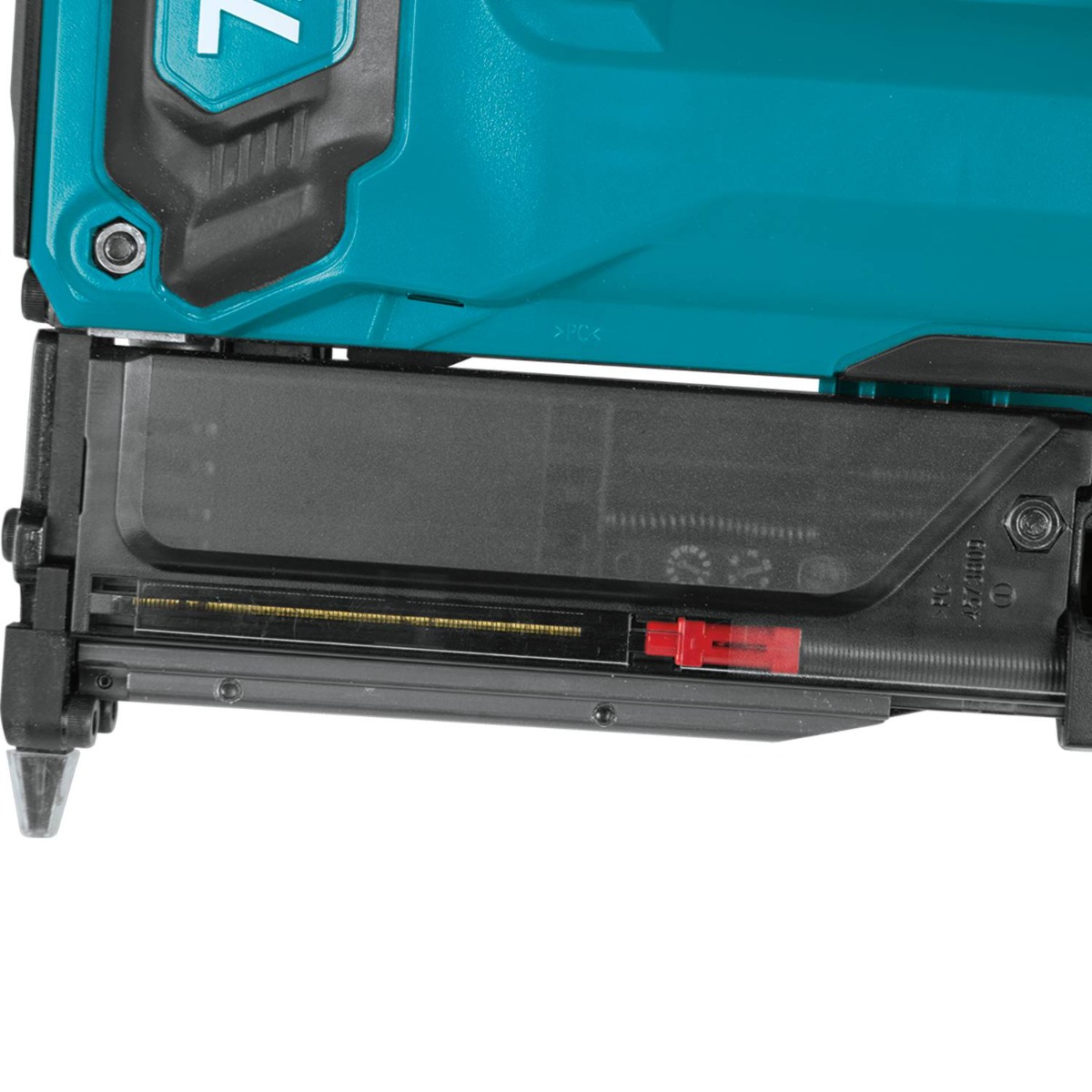

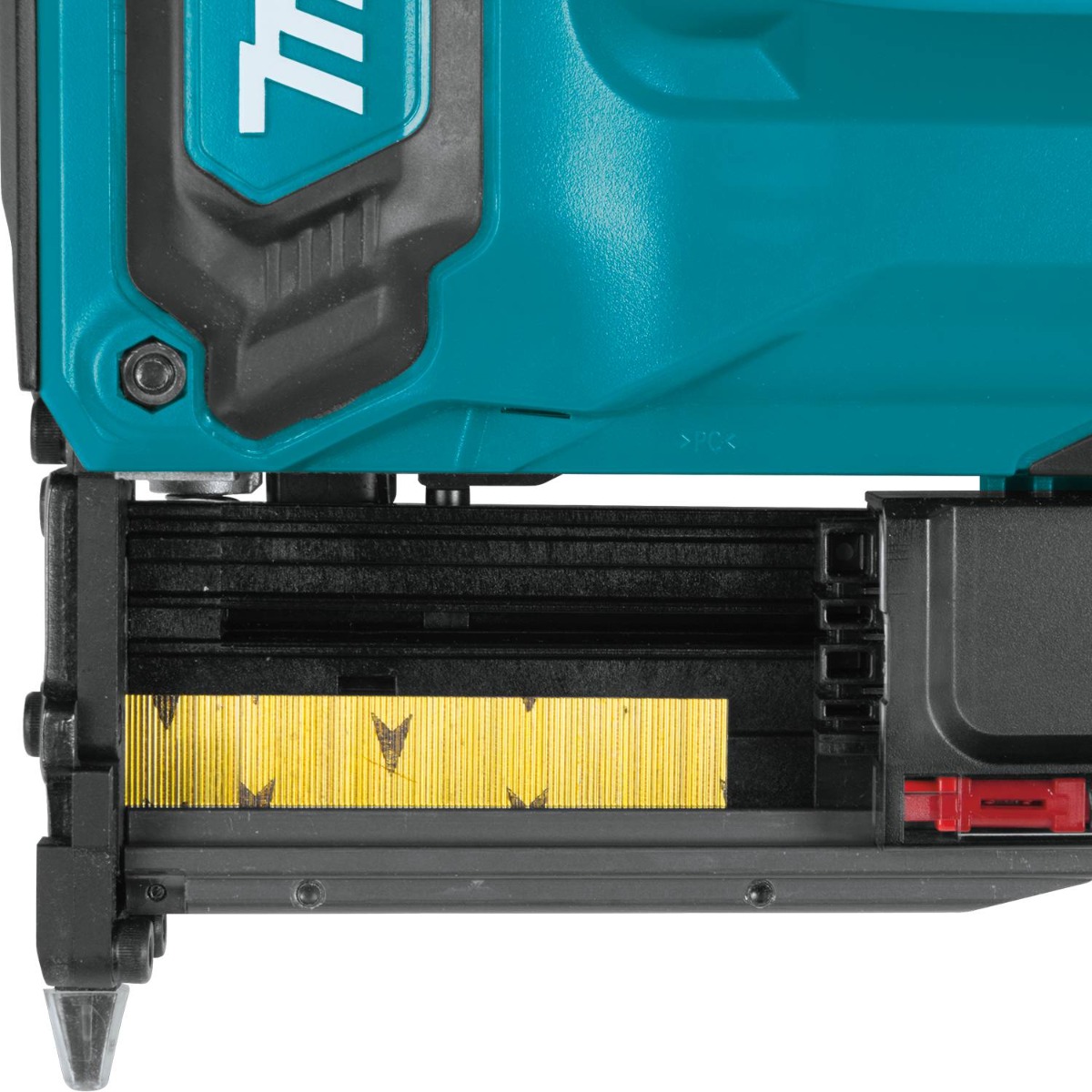

Magazine Capacity
120
Item Weight
5.1 lbs.
Usage Type
Interior
Minimum Fastener Length
5/8"
Firing Type

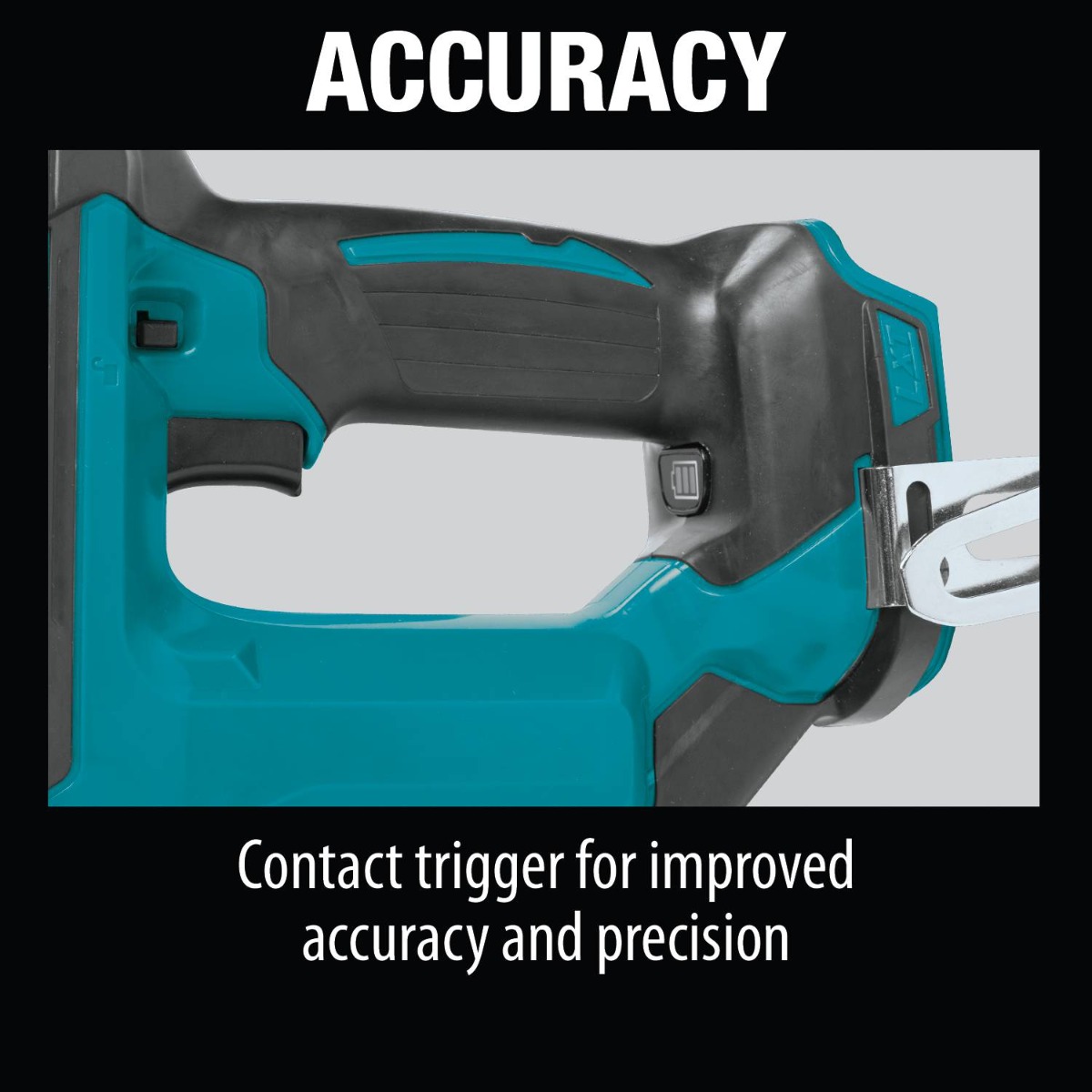

Contact
Model
XTP02
Product Type
Pinner
Depth Control
Yes
Power Source
Battery
Special Offer
No
Voltage
18V
Shots/Charge
Up to 5,300 (w/ 5.0Ah Battery)
Magazine Type
Strip
