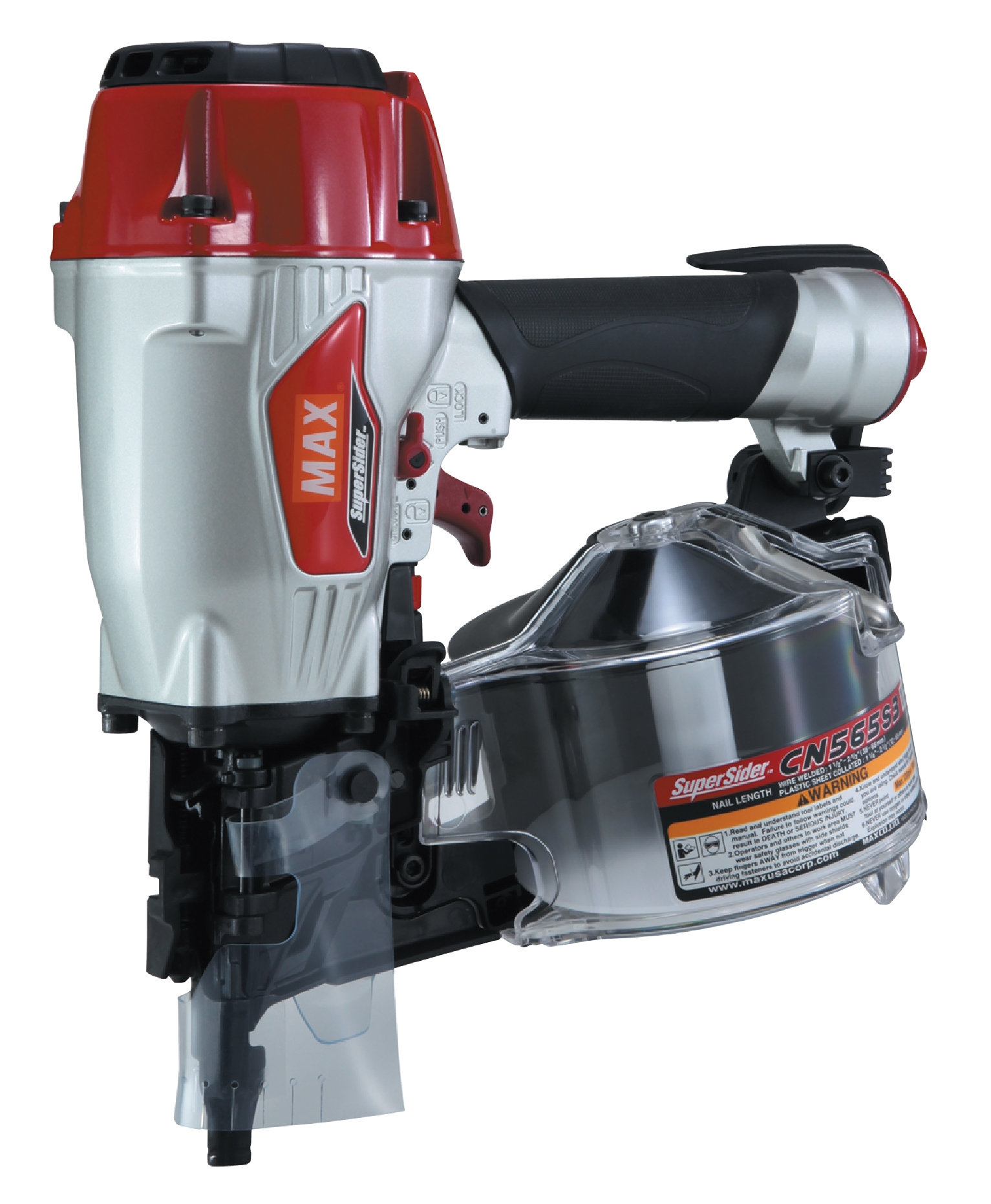

MAX CN565S3 SuperSider Siding Coil Nailer, 1-1/4" to 2-1/2"

SKU#: CN565S3
BOX COUNT: 1

$443.79

FREE
SHIPPING
QTY:12345678910111213+
Add to Cart

COMPATIBLE FASTENERS

1-1/4" x .083 Ring Shank Round Head Wire Coil Nails
SKU#: 3CRBC83225
Qty/Box: 14000

$62.51

QTY:12345678910111213+
Add to Cart
1-1/4" x .093 Ring 304 Stainless Wire Coil Nail
SKU#: JACR3D093SS
Qty/Box: 3600

$206.98

QTY:12345678910111213+
Add to Cart
1-1/2" x .083 Ring Shank Wire Coil Nails
SKU#: 4CRBC83225
Qty/Box: 14000

$66.28

QTY:12345678910111213+
Add to Cart
1-1/2" x .083 Screw Shank Wire Coil Nails
SKU#: 4CSBC83225
Qty/Box: 14000

$66.28

QTY:12345678910111213+
Add to Cart
VIEW MORE

ACCESSORIES

SKU#:OILTOOL16CROLAIR OILTOOL16C All-Weather Tool Oil (16 oz.)Box count: 1

$8.99

QTY:12345678910111213+
Add to Cart
FREE
SHIPPING
SKU#:HN65SMAX HN65S SuperSider Coil Siding Nailer, 1-1/4" to 2-1/2"Box count: 1

$690.11

QTY:12345678910111213+
Add to Cart
FREE
SHIPPING
SKU#:CN55MAX CN55 Industrial Coil Nailer, 1" to 2-1/4"Box count: 1

$319.66

QTY:12345678910111213+
Add to Cart
FREE
SHIPPING
SKU#:CN445R3MAX CN445R3 SuperRoofer Coil Roofing Nailer, 3/4" to 1-3/4"Box count: 1

$283.54

QTY:12345678910111213+
Add to Cart
FREE
SHIPPING
SKU#:CN80MAX CN80 Industrial Coil Nailer, 2" to 3-1/4"Box count: 1

$383.75

QTY:12345678910111213+
Add to Cart

PRODUCT OVERVIEW

The MAX CN565S3 SuperSider siding coil nailer drives 15 degree wire collated nails from 1-1/2" to 2-1/2" in length, and plastic collated nails from 1-1/4" to 2-1/2" in length. New and improved over the previous CN565S and CN565S2, this coil siding nailer features a smaller, lighter design, 7 percent more power, and a slim nose contact arm for improved accuracy - that reduces nail bending and driver marks. At only 5 lbs., this tool is easy to handle for extended periods of time. Additional features include a maintenance free end cap filter to prevent dust and debris from entering the tool, easy-load magazine, adjustable depth of drive, adjustable exhaust, anti-double fire mechanism, and non-marring contact tip. This MAX siding coil nailer is excellent for high volume siding, fencing, exterior trim, sheathing, subfloor, roof decking, exterior decking, furring and strapping applications. The MAX CN565S3 also comes with rafter hook and carrying case.

SPECIFICATIONS
Box Count
1
SKU
CN565S3
UPC
093818301438
Power Type
Pneumatic
Collation Type
Wire Weld
Application Type
Fencing, Decking, Siding
Brand
MAX USA
Maximum Fastener Length
2-1/2"
Condition
New
Case/Bag Included
Yes
Included In Box
Safety Glasses
Manufacturer's Warranty
Five-Year Limited
Item Width
5"
Special Features
Adjustable Exhaust
Item Height
11-7/8"
Item Length
10-7/8"
Magazine Capacity
400
Country of Manufacture
Thailand
Item Weight
5 lbs.
Usage Type
Exterior
Minimum Fastener Length
1-1/4"
Housing Material
Magnesium
Operating Pressure
70 to 120 PSI
Firing Type
Double Trigger
Air Inlet Size
1/4" NPT
Air Consumption
0.05 SCFM
Product Type
Nailer
Depth Control
Yes
Power Source
Air
Special Offer
No
Diameter Range
.083" to .099"
Product Degree/Angle
15 Degree
Magazine Type
Coil
Fastener Type
Siding, Fencing Nail
