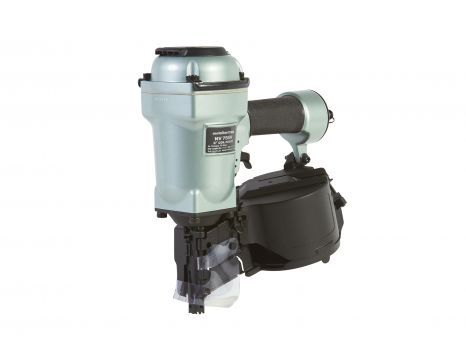

Metabo HPT NV75AN(S1)M Coil Pallet Nailer, 1-3/4" to 3"

SKU#: NV75ANS1M
BOX COUNT: 1

$0.00

FREE
SHIPPING
QTY:12345678910111213+
Add to Cart

COMPATIBLE FASTENERS

1-3/4" x .099 Screw Shank Wire Coil Nail
SKU#: 5CSBD99235
Qty/Box: 9000

$65.96

QTY:12345678910111213+
Add to Cart
2" x .099 Screw Shank Blunt Chisel Point Wire Coil Nails
SKU#: 6CSBC99
Qty/Box: 9000

$69.12

QTY:12345678910111213+
Add to Cart
2" x .099 Screw Shank Blunt Diamond Tip Wire Coil Nail
SKU#: 6CSBD99
Qty/Box: 9000

$69.12

QTY:12345678910111213+
Add to Cart
2" x .099 Whisper Grip FRH Step Ring BB Coil Flat Wound
SKU#: BT21APBF
Qty/Box: 6600

$136.09

QTY:12345678910111213+
Add to Cart
VIEW MORE

ACCESSORIES

SKU#:OILTOOL16CROLAIR OILTOOL16C All-Weather Tool Oil (16 oz.)Box count: 1

$8.99

QTY:12345678910111213+
Add to Cart
SKU#:IP3814MS3/8" Industrial Quick Connect Air Fitting Plug, 1/4" MPTBox count: 1

$2.88

QTY:12345678910111213+
Add to Cart
SKU#:IP3838MS3/8" Industrial Air Hose Connector Plug, 3/8" MPTBox count: 1

$3.18

QTY:12345678910111213+
Add to Cart
SKU#:NPL14050C1/4" x 50 ft. Gray Push-Lok Rubber Air Hose w/ FittingsBox count: 1

$74.77

QTY:12345678910111213+
Add to Cart
VIEW MORE
FREE
SHIPPING
SKU#:NV75A5MMetabo HPT NV75A5 Siding Coil Nailer, 1-3/4” to 3”Box count: 1

$299.00

QTY:12345678910111213+
Add to Cart
FREE
SHIPPING
SKU#:NV83A5MMetabo HPT NV83A5M Coil Framing Nailer, 2" to 3-1/4"Box count: 1

$399.00

QTY:12345678910111213+
Add to Cart
FREE
SHIPPING
SKU#:NV90AGSMMetabo HPT NV90AGSM Coil Framing Nailer, 1-3/4" to 3-1/2"Box count: 1

$334.00

QTY:12345678910111213+
Add to Cart
FREE
SHIPPING
SKU#:NV45AB2MMetabo HPT NV45AB2 Coil Roofing Nailer, 7/8" to 1-3/4"Box count: 1

$289.00

QTY:12345678910111213+
Add to Cart

PRODUCT OVERVIEW

The Metabo HPT NV75AN(S1)M Coil Pallet Nailer is designed to drive 15 degree 1-3/4" to 3" wire collated pallet nails, from .099" to .131" in diameter. This pallet and crate building nail gun comes with a five-year limited warranty from the manufacturer. Bringing power, precision and convenience to the pallet manufacturing industry, this nail gun boasts a lightweight design at only 6.3 lbs.

Capable of driving nails as large as 3” x .131 at a rate of 3 per second, the NV75ANS1 is both powerful and efficient. The side load magazine and open nose design offer convenience for reloading and jam removal, while the plastic shield offers safety, deflecting wire collation away from the user. Features such as the 360° adjustable air deflector, high capacity magazine, and a tool-free depth of drive adjustment bring convenience to any user. The ability to use both wire and plastic sheet collated nails offers flexibility for pallet manufacturing facilities. The NV75ANS1 comes standard with a contact (bump) trigger installed on the tool, an optional sequential trigger, and safety glasses in the box.

This item is a direct replacement for the Metabo HPT NV75ANM.

SPECIFICATIONS
ResourcesBox Count
1
SKU
NV75ANS1M
UPC
717709024243
Power Type
Pneumatic
Collation Type
Wire Weld
Application Type
Crating, Pallet Assembly
Brand
Metabo HPT
Maximum Fastener Length
3"
Condition
New
Fastener Compatibility
15 Degree Wire Coil Nails
Case/Bag Included
No
Included In Box
Safety Glasses, Sequential Trigger
Manufacturer's Warranty
Five-Year Limited
Item Width
5.2"
Special Features
Adjustable Air Exhaust
Item Height
12.4"
Item Length
11"
Magazine Capacity
200 - 300
Item Weight
6.3 lbs
Usage Type
Interior
Minimum Fastener Length
1-3/4"
Housing Material
Aluminum
Operating Pressure
70 to 120 PSI
Firing Type
Contact (Bump)
Air Inlet Size
1/4"
Air Consumption
.085 ft.^3/cycle at 100 PSI
Model
NV75AN(S1)
Product Type
Nailer
Depth Control
Yes
Power Source
Air
Special Offer
No
Diameter Range
.099" to .131"
Product Degree/Angle
15 Degree
Magazine Type
Coil
