Metabo HPT NV75AN(S1)M Coil Pallet Nailer, 1-3/4" to 3"

Box Count
1
SKU
NV75ANS1M
$329.00
FREE SHIPPING
Metabo HPT NV75AN(S1)M Coil Pallet Nailer, 1-3/4" to 3" NV75ANS1M

Box Count: 1

$329.00
Qty:
In Stock,Subject To Manufacturer Availability This item is shipped directly from the manufacturer to you
Qty:
In Stock, Subject To Manufacturer Availability This item is shipped directly from the manufacturer to you. In the event there is a delay in shipping due to availability, We will contact you via email within one business day of your order being placed.
Free Shipping
Product Overview

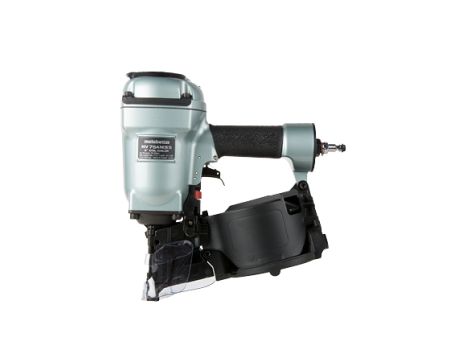

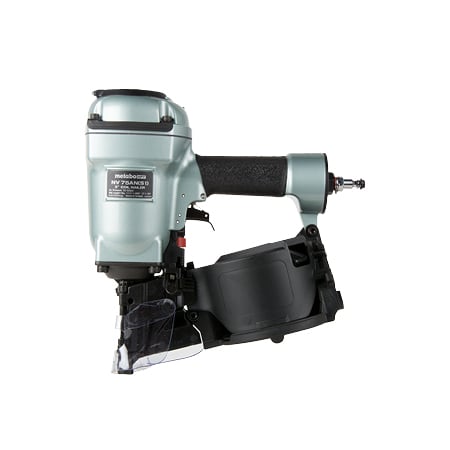

The Metabo HPT NV75AN(S1)M Coil Pallet Nailer is designed to drive 15 degree 1-3/4" to 3" wire collated pallet nails, from .099" to .131" in diameter. This pallet and crate building nail gun comes with a five-year limited warranty from the manufacturer. Bringing power, precision and convenience to the pallet manufacturing industry, this nail gun boasts a lightweight design at only 6.3 lbs.

Capable of driving nails as large as 3” x .131 at a rate of 3 per second, the NV75ANS1 is both powerful and efficient. The side load magazine and open nose design offer convenience for reloading and jam removal, while the plastic shield offers safety, deflecting wire collation away from the user. Features such as the 360° adjustable air deflector, high capacity magazine, and a tool-free depth of drive adjustment bring convenience to any user. The ability to use both wire and plastic sheet collated nails offers flexibility for pallet manufacturing facilities. The NV75ANS1 comes standard with a contact (bump) trigger installed on the tool, an optional sequential trigger, and safety glasses in the box.

This item is a direct replacement for the Metabo HPT NV75ANM.

WARNING: California residents, this item qualifies for Proposition 65 legislation.
Compatible Fasteners Specifications
  • Resources

    NV75AN(S1) Tool Card

    NV75AN(S1) Manual

  • Box Count 1
  • SKU NV75ANS1M
  • UPC 717709024243
  • Power Type Pneumatic
  • Collation Type Wire Weld
  • Application Type Crating, Pallet Assembly
  • Brand Metabo HPT
  • Maximum Fastener Length 3"
  • Condition New
  • Fastener Compatibility 15 Degree Wire Coil Nails
  • Case/Bag Included No
  • Included In Box Safety Glasses, Sequential Trigger
  • Manufacturer's Warranty Five-Year Limited
  • Item Width 5.2"
  • Special Features Adjustable Air Exhaust
  • Item Height 12.4"
  • Item Length 11"
  • Magazine Capacity 200 - 300
  • Item Weight 6.3 lbs
  • Usage Type Interior
  • Minimum Fastener Length 1-3/4"
  • Housing Material Aluminum
  • Operating Pressure 70 to 120 PSI
  • Firing Type Contact (Bump)
  • Air Inlet Size 1/4"
  • Air Consumption .085 ft.^3/cycle at 100 PSI
  • Model NV75AN(S1)
  • Product Type Nailer
  • Depth Control Yes
  • Power Source Air
  • Special Offer No
  • Diameter Range .099" to .131"
  • Product Degree/Angle 15 Degree
  • Magazine Type Coil
