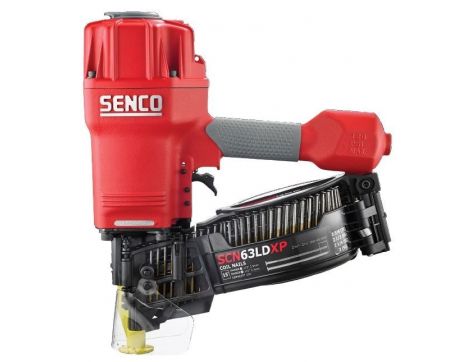

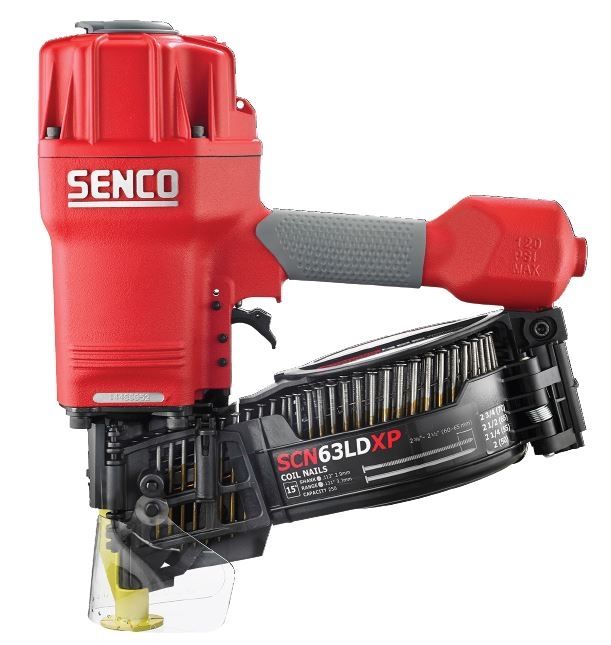

Senco SCN63LDXP Structural Foam Insulation Nailer, 2-3/8" to 2-1/2"

SKU#: 8W0001N
BOX COUNT: 1

$0.00

FREE
SHIPPING
QTY:12345678910111213+
Add to Cart

COMPATIBLE FASTENERS

2-1/2" x .113 Screw Shank Wire Coil Nail
SKU#: 8CSBD113
Qty/Box: 5000

$65.37

QTY:12345678910111213+
Add to Cart
Coil 2-3/8" x .113 Smooth
SKU#: GD24APBF
Qty/Box: 6000

$148.58

QTY:12345678910111213+
Add to Cart
Coil 2-1/2" x .113 Smooth
SKU#: GD25APBF
Qty/Box: 6000

$124.69

QTY:12345678910111213+
Add to Cart
Coil 2-3/8" x .113 Ring
SKU#: GL24APBF
Qty/Box: 6000

$103.69

QTY:12345678910111213+
Add to Cart
VIEW MORE

ACCESSORIES

SKU#:GD25AABFCoil 2-1/2" x .113 Smooth Galvanized SencoteBox count: 6000

$245.49

QTY:12345678910111213+
Add to Cart
SKU#:GL24AGBFCoil 2-3/8" x .113 Ring StainlessBox count: 2700

$402.29

QTY:12345678910111213+
Add to Cart

PRODUCT OVERVIEW

Introducing the Senco SCN63LDXP structural foam insulation nailer, capable of driving 15 degree, 2-3/8" to 2-1/2" wire coil framing nails. Designed specifically for the installation of continuous structural foam insulation panels, the SCN63LDXP Coil Nailer drives nails through up to 1-3/16” thick foam insulation panels. The Senco SCN63LDXP features a long drive lock out, ensuring the proper seating of a nail head - through the foam - against the substrate. The unique safety foot guide ensures proper alignment and reduces damage to the foam surface when fasteners are driven. The SCN63LDXP fastening system reduces installation time and improves productivity on the job site or for in-plant operations. Additional features on this tool include 360 degree adjustable exhaust, tool-free depth of drive adjustment, comfort grip, adjustable nail canister, e-z load design and debris shield. This Senco insulation nailer also comes with a five-year limited warranty from the manufacturer.

*This tool is to ONLY be used to install continuous foam insulation with a foam thickness of up to 1-3/16” deep. NEVER use on bare wood, metal or other hard surfaces. The drive blade will extend beyond the safety element in the actuated position. Recommended for Atlas ThermalStar LCi-SS.

**This Item Has Been Discontinued**

SPECIFICATIONS
Box Count
1
SKU
8W0001N
UPC
741474137174
Power Type
Pneumatic
Collation Type
Wire Weld
Maximum Fastener Length
2-1/2"
Condition
New
Case/Bag Included
No
Manufacturer's Warranty
Five-Year Limited
Item Width
5-19/50"
Special Features
Long Drive Blade
Item Height
13-7/20"
Item Length
12-22/25"
Magazine Capacity
225-250
Country of Manufacture
Taiwan
Item Weight
8.1 lbs.
Usage Type
Exterior
Minimum Fastener Length
2-3/8"
Housing Material
Aluminum
Operating Pressure
70 to 120 PSI
Firing Type
Sequential
Air Inlet Size
3/8" NPT
Air Consumption
9.54 SCFM
Model
SCN63LDXP
Depth Control
Yes
Power Source
Air
Special Offer
No
Diameter Range
.113" to .131"
Product Degree/Angle
15 Degree
Magazine Type
Coil
Fastener Type
Insulation Nailer
