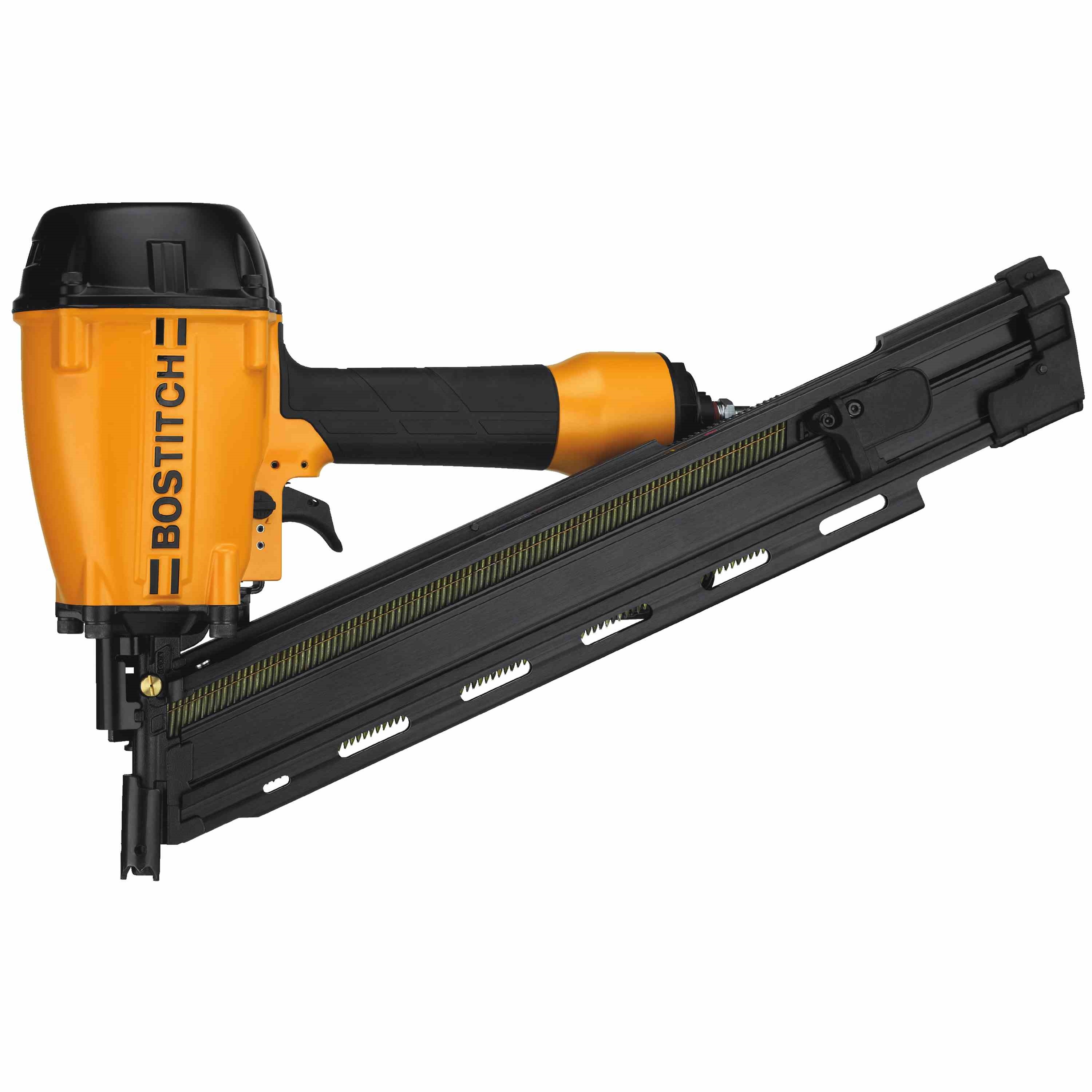

Bostitch BTF83WW Low Profile Framing Nailer, 2" to 3-1/4"

SKU#: BTF83WW
BOX COUNT: 1

$270.00

FREE
SHIPPING
QTY:12345678910111213+
Add to Cart

COMPATIBLE FASTENERS

3-1/4" x .131 Smooth Strip Nail
SKU#: 8153
Qty/Box: 2000

$73.91

QTY:12345678910111213+
Add to Cart
3" x .120 OFRH Ring Hot Dipped Galvanized
SKU#: 0634270
Qty/Box: 2000

$84.13

QTY:12345678910111213+
Add to Cart
2-3/8" x .113 Ring 304 Stainless Steel
SKU#: 8402
Qty/Box: 1000

$115.53

QTY:12345678910111213+
Add to Cart
3" x .120 Ring 304 Stainless Steel Wire Strip Nail
SKU#: 8403
Qty/Box: 1000

$147.99

QTY:12345678910111213+
Add to Cart
VIEW MORE

YOU MAY ALSO LIKE

SKU#:81602-3/8" x .113 Ring Clipped Head Wire Strip NailBox count: 2000

$56.08

QTY:12345678910111213+
Add to Cart
SKU#:81512-3/8" x .113 Smooth Wire Strip NailsBox count: 2000

$54.49

QTY:12345678910111213+
Add to Cart

PRODUCT OVERVIEW

The Stanley Bostitch BTF83WW air-powered low profile framing nailer drives 28 degree wire weld clipped head framing nails from 2" to 3-1/4" in length. Includes one-year manufacturer's warranty. The BTF83WW is the latest addition to Bostitch's low profile framing nailer series. This unique design allows easy access between rafters and into tight quarters. Additonal features include a selectable trigger for bump fire or sequential operation, tool-free adjustable depth of drive, and adjustable rafter hook. This Bostitch wire weld framing nailer is built for driving into engineered lumber, and is also great for framing, sheathing, strapping, siding, fencing, trusses, exterior decks, and pallet and crate assembly. The BTF83WW replaces the Bostitch LPF28WW.

SPECIFICATIONS
Box Count
1
SKU
BTF83WW
UPC
077914061960
Power Type
Pneumatic
Collation Type
Wire Weld
Application Type
Framing, Sheathing, Fencing
Brand
Stanley Bostitch
Maximum Fastener Length
3-1/4"
Condition
New
Case/Bag Included
No
Included In Box
Air Fitting
Manufacturer's Warranty
One-Year Limited
Item Width
5-3/4"
Special Features
Dry Fire Lockout
Item Height
12-3/4"
Item Length
20-1/2"
Magazine Capacity
100
Country of Manufacture
Taiwan
Item Weight
7.9 lbs.
Usage Type
Exterior
Minimum Fastener Length
2"
Operating Pressure
70 to 120 PSI
Firing Type
Selective
Air Inlet Size
1/4" NPT
Air Consumption
6.4 SCFM
Product Type
Nailer
Depth Control
Yes
Power Source
Air
Special Offer
No
Diameter Range
.113" to .131"
Product Degree/Angle
28 Degree
Magazine Type
Strip
Fastener Type
Framing Nail
