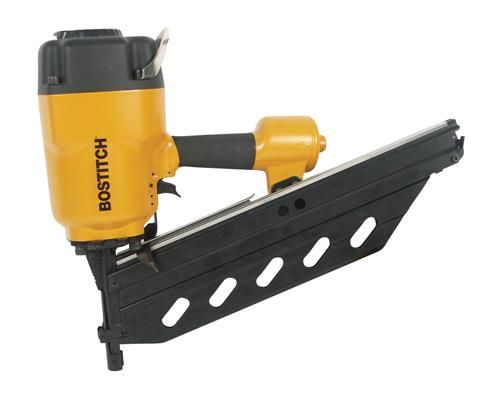

Stanley Bostitch BRT130 Timber Framing Nailer, 4" to 5-1/8"

Box Count
1
SKU
BRT130
$489.00
FREE SHIPPING
Stanley Bostitch BRT130 Timber Framing Nailer, 4" to 5-1/8" BRT130

Box Count: 1

$489.00
Qty:
In Stock,Subject To Manufacturer Availability This item is shipped directly from the manufacturer to you
Qty:
In Stock,Subject To Manufacturer Availability This item is shipped directly from the manufacturer to you. In the event there is a delay in shipping due to availability, We will contact you via email within one business day of your order being placed.
Free Shipping
Product Overview

The Stanley Bostitch BRT130 timber framing nailer drives 21 degree plastic strip nails from 4" to 5-1/8" in length. Comes complete with secondary handle for improved handling and control. The BRT130 features a tool free adjustable exhaust, easy contact actuation to maximize productivity, built-in eye hook to suspend overhead and nail lockout to prevent dry firing. This one of kind Bostitch framing nailer is a true workhorse. Provides maximum driving power for the toughest framing and crating applications. Includes Bostitch 90-day warranty on wear items, one-year workmanship, and a three-year industrial warranty on tool housing and castings.

WARNING: California residents, this item qualifies for Proposition 65 legislation.
Related Fasteners Specifications
  • Box Count 1
  • SKU BRT130
  • UPC 077914050285
  • Power Type Pneumatic
  • Collation Type Plastic Strip
  • Application Type Framing, Subfloor, Fencing
  • Brand Stanley Bostitch
  • Maximum Fastener Length 5-/8"
  • Condition New
  • Case/Bag Included No
  • Manufacturer's Warranty 90-Day Warranty On Wear Items, One-Year Workmanship, Five Year Industrial on Tool Housing: Casting
  • Item Width 5-1/2"
  • Special Features Adjustable Exhaust
  • Item Height 17-1/2"
  • Item Length 21-1/2"
  • Magazine Capacity 50
  • Country of Manufacture Taiwan
  • Item Weight 13.75 lbs.
  • Usage Type Exterior
  • Minimum Fastener Length 4"
  • Housing Material Magnesium
  • Operating Pressure 70 to 120 PSI
  • Firing Type Sequential
  • Air Inlet Size 3/8" NPT
  • Air Consumption 13.7 SCFM
  • Product Type Nailer
  • Power Source Air
  • Special Offer Available No
  • Diameter Range .113" to 165"
  • Product Degree/Angle 20-22 Degree
  • Magazine Type Strip
  • Fastener Type Framing Nail
Reviews/Q&A

Product Questions

No questions yet. Be the first to ask the question!
Customer Reviews
  1. Jams and Misfires
    Misfires about 40% of the time and is prone to jams. Clearing the jam can be a major pain as the ejection channel does not have a removable cover plate like many other framing nailers do. The last time it jammed I had to take it to a service center to get it cleared.

  2. Not Good
    I was hesitant to purchase this nail gun after reading the previous two negative reviews. I wanted to buy the more expensive Fasco nailer but it was out of stock and the sales rep assured me this was an okay tool and they sell 30 of them a month. So at $475.00 I went ahead and ordered it. The gun consistently misfires or does not fire at all there have been several jams and clearing the jam is a major hassle that requires removal of the carriage. The last jam I could not undo and it’ll have to be sent to a service center for repair.

  3. Feeding issues
    Fails to advance nails about 50 percent of the time and also fairly inconsistent drive depth when it does work. Truly disappointed with this 500 dollar door stop.

  4. not built well
    We had problems with the trigger right from the start. And the exhaust head was getting stuck within the first 100 nails. So we ended up hand nailing over 2,000 nails. When it worked it was nice but it only worked for 1200 of the 3000 nails we used.
