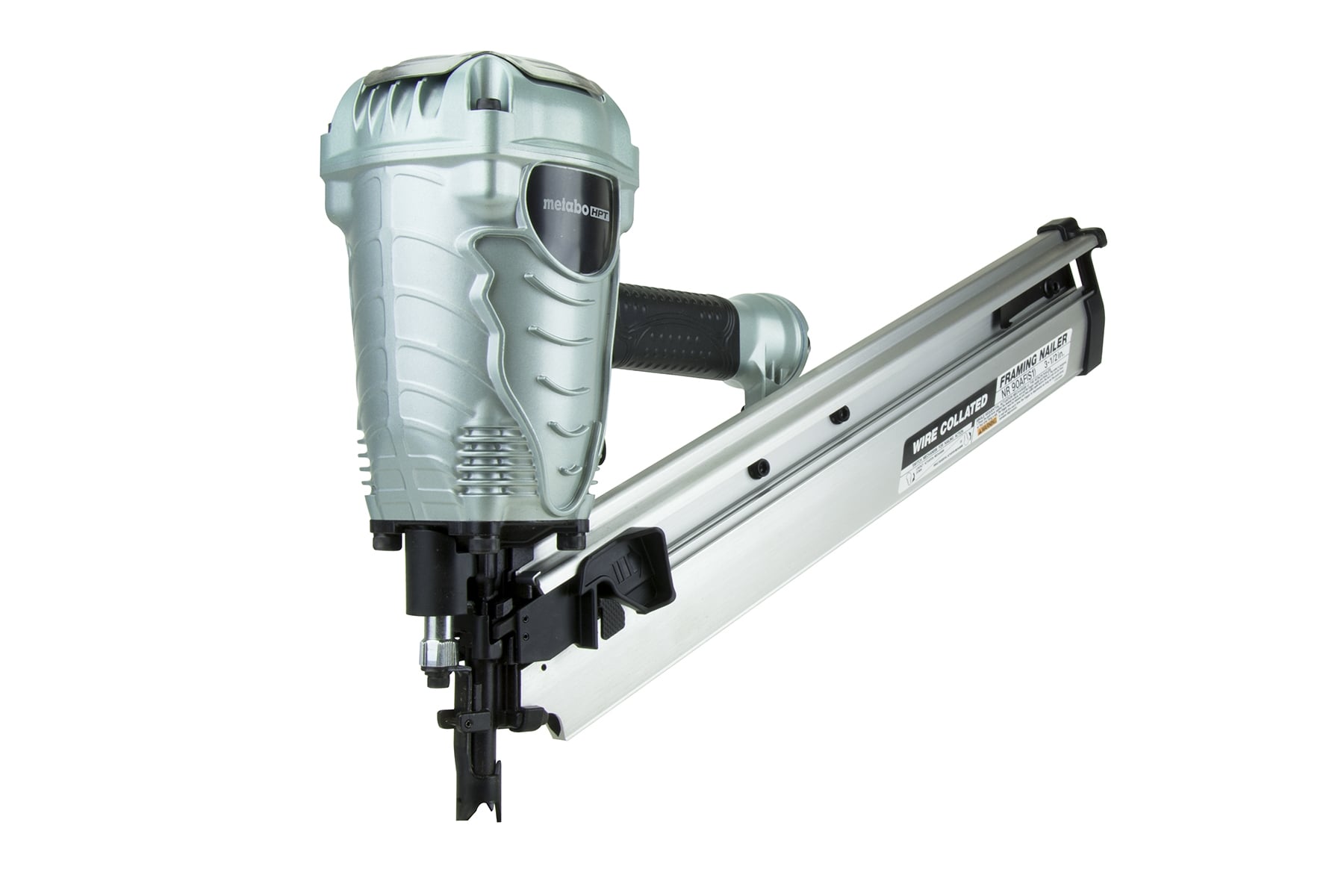

Metabo HPT NR90AF(S1)M Wire Weld Framing Nailer, 2" to 3-1/2"

SKU#: NR90AFS1M
BOX COUNT: 1

$0.00

FREE
SHIPPING
QTY:12345678910111213+
Add to Cart

COMPATIBLE FASTENERS

2-3/8" x .113 Smooth Wire Strip Nails
SKU#: 8151
Qty/Box: 2000

$54.49

QTY:12345678910111213+
Add to Cart
2-3/8" x .113 Ring Clipped Head Wire Strip Nail
SKU#: 8160
Qty/Box: 2000

$56.08

QTY:12345678910111213+
Add to Cart
2-3/8" x .113 Ring Hot Dipped Galvanized Nails
SKU#: 8165
Qty/Box: 2000

$86.21

QTY:12345678910111213+
Add to Cart
2-3/8" x .113 Ring 304 Stainless Clipped Head Wire Strip Nail
SKU#: JAWR7XD113SS
Qty/Box: 2000

$0.00

OUT OF STOCK
VIEW MORE

ACCESSORIES

SKU#:OILTOOL16CROLAIR OILTOOL16C All-Weather Tool Oil (16 oz.)Box count: 1

$8.99

QTY:12345678910111213+
Add to Cart
FREE
SHIPPING
SKU#:NR83A5(S1)MMetabo HPT NR83A5(S1)M 21-Degree Framing Nailer w/ Aluminum Magazine, 2"-3-1/4"Box count: 1

$319.00

QTY:12345678910111213+
Add to Cart
FREE
SHIPPING
SKU#:NR90ADS1MMetabo HPT NR90ADS1M Clipped Head Framing Nailer, 2" to 3-1/2"Box count: 1

$198.00

QTY:12345678910111213+
Add to Cart
FREE
SHIPPING
SKU#:NR90AES1MMetabo HPT NR90AES1M Round Head Framing Nailer, 2" to 3-1/2"Box count: 1

$198.00

QTY:12345678910111213+
Add to Cart
FREE
SHIPPING
SKU#:NR83A5(S)MMetabo HPT NR83A5(S)M Round Head Framing Nailer w/out Depth Adjust, 2" to 3-1/4"Box count: 1

$299.00

QTY:12345678910111213+
Add to Cart

PRODUCT OVERVIEW

The Metabo HPT NR90AF(S1)M air-powered framing nailer drives 28 degree wire weld collated framing nails from 2" to 3-1/2" in length. A new head guard design featuring exterior head bolts now allows for easier disassembly, reducing downtime for maintenance. Includes five-year manufacturer's warranty. Features on the NR90AF(S1)M include a lightweight and well-balanced design, tool free adjustable depth of drive, rubber hand grip for increased comfort, aggressive saw tooth safety for toe-nailing, switchable trigger for bump fire or sequential operation, and aluminum magazine. Safety glasses included in box. This Metabo HPT framing nailer is great for framing, sheathing, strapping, siding, fencing, trusses, exterior decks, and pallet and crating.

This item replaces the previous generation NR90AF, and is identical to the Hitachi NR90AF(S1). Learn more about Hitachi Power Tool's name change to Metabo HPT.

SPECIFICATIONS
Box Count
1
SKU
NR90AFS1M
UPC
717709019560
Power Type
Pneumatic
Collation Type
Wire Weld
Application Type
Framing, Sheathing, Subfloor, Fencing
Brand
Metabo HPT
Maximum Fastener Length
3-1/2"
Condition
New
Case/Bag Included
No
Manufacturer's Warranty
Five-Year Limited
Item Width
4-15/16"
Special Features
Open Nose Design
Item Height
12-11/16"
Item Length
21-19/64"
Magazine Capacity
100
Country of Manufacture
Taiwan
Item Weight
7.3 lbs.
Usage Type
Exterior
Minimum Fastener Length
2"
Operating Pressure
70 to 120 PSI
Firing Type
Selective
Air Inlet Size
3/8" NPT
Air Consumption
.088 SCFM
Model
NR90AF(S1)M
Product Type
Nailer
Depth Control
Yes
Power Source
Air
Special Offer
No
Diameter Range
.113" to .131"
Product Degree/Angle
28 Degree
Magazine Type
Strip
Fastener Type
Framing Nail
