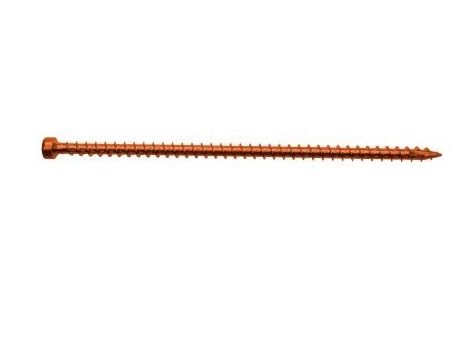

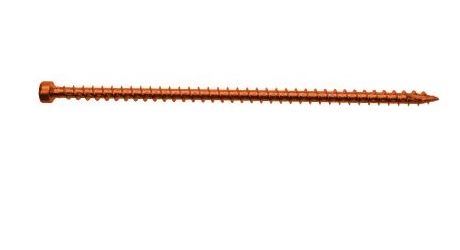

0.152 x 6" Strong-Drive SDWC Non-Collated T-30 Truss Screw #SDWC15600B-KT

$ 272.00
QTY PER BOX: 500

Details

The Strong-Drive SDWC Truss Screw is specially designed for use with the QUIK STIK Rafter and Truss Fastening System. Made by Simpson Strong-Drive, this 6" x 0.152" screw (Item #SDWC15600B-KT) smoothly drives into wood without splitting it. The rafter and truss screw features a type-17 point, a 6-lobe drive recess, and a cap head for consistent drive and countersinking. No predrilling is required.

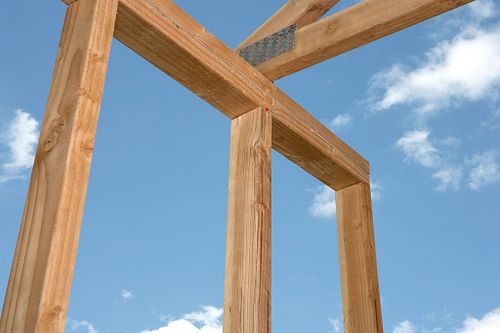

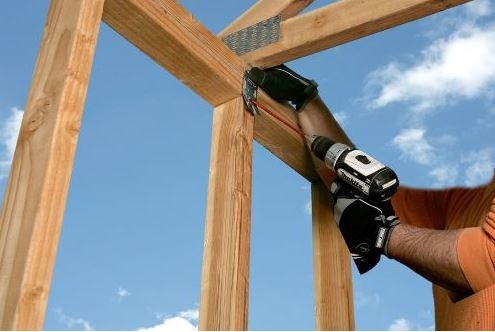

Tested in accordance with ICC-ES AC233 and AC13 (wall and roof-to-wall assembly), the code-listed SDWC screw has an orange topcoat for quick inspections. A fully threaded shank creates a secure connection by engaging the entire length of the fastener. Use this structural wood screw for top plate-to-rafter, stud-to-top plate, sole-to-rim, and stud-to-sole connections. Includes (2) matched-tolerance driver bits and (2) metal installation guide tools.

  • Applications: Rafter and Truss Fastening
  • Compatible Tools: QUIK STIK Rafter and Truss System
  • Fastener Type: Strong-Drive SDWC Truss Screw
  • Screw Length: 6"
  • Shank Diameter: 0.152"
  • Head Type: Cap
  • Thread Length: 5-3/4"
  • Drive Type: T-30 6-Lobe
  • Point Type: Type-17 Point
  • Shear Loads: SDWC Load Tables
  • Coating: Clear Zinc
  • Top Coat: Orange
  • Codes/Standards: ICC-ES AC233, AC13; IAPMO-UES ER-262; IRC & IBC (2012 & 2015)
  • Shipping Weight: 20 lbs.

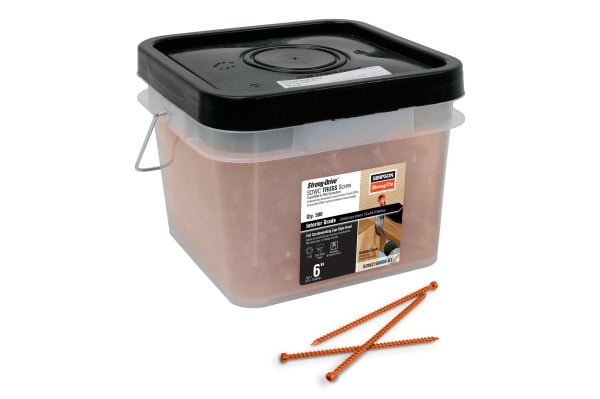

  • Box Count: 500 Screws (Non-Collated)
  • Brand: Simpson Strong-Tie
  • SKU: SDWC15600B-KT
  • UPC: 707392888307
