5/8" x 2-1/4" Strong-Tie Rod Coupler Head Sleeve-All Sleeve Anchor

Box Count
20
SKU
SL62214C
$35.19
5/8" x 2-1/4" Strong-Tie Rod Coupler Head Sleeve-All Sleeve Anchor SL62214C

Box Count: 20

$35.19
Qty:
In Stock,Subject To Manufacturer Availability This item is shipped directly from the manufacturer to you
Qty:
In Stock,Subject To Manufacturer Availability This item is shipped directly from the manufacturer to you. In the event there is a delay in shipping due to availability, We will contact you via email within one business day of your order being placed.
Product Overview

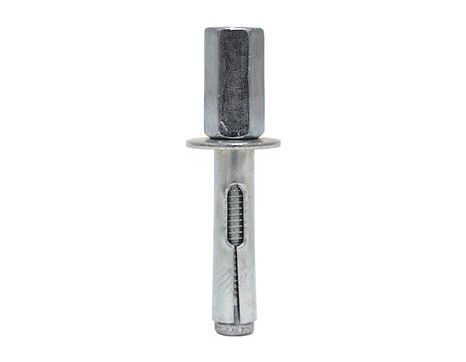

Reliable and robust with an exceptionally strong hold, the Simpson Strong-Tie Sleeve-All Sleeve Anchor SL62214C 5/8" x 2-1/4" is just right for your next anchoring project. This Rod Coupler head, expanding anchor is made of carbon steel with a zinc plated finish, ideal for anchoring attachments in all types of solid base materials. Designed with efficiency, the Sleeve-All anchoring system comes pre-assembled making it a true time-saving fastener.

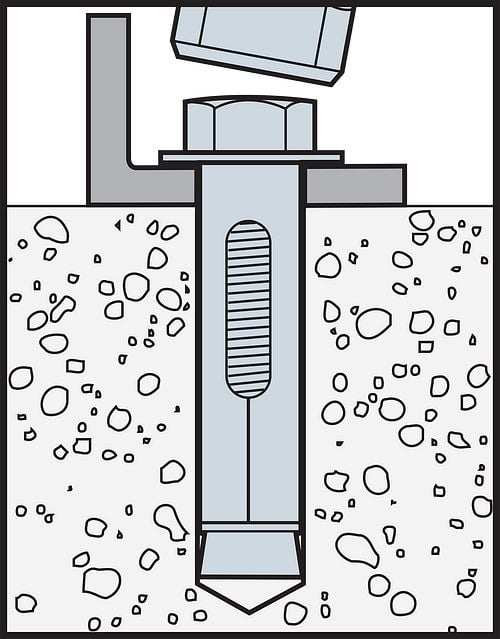

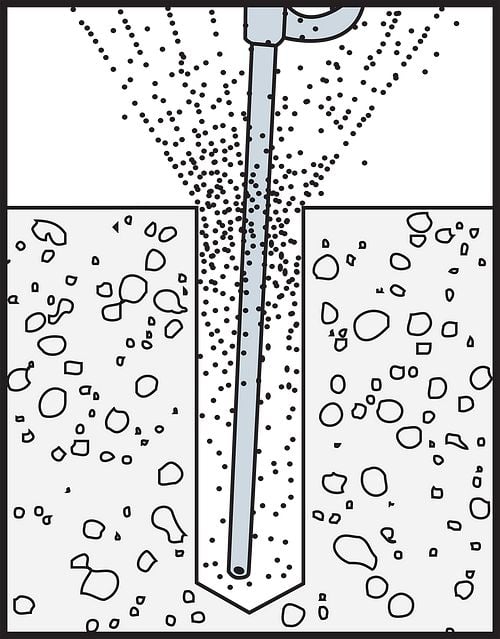

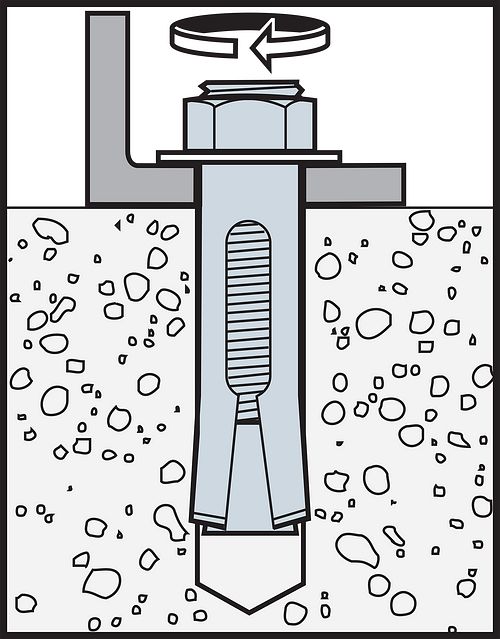

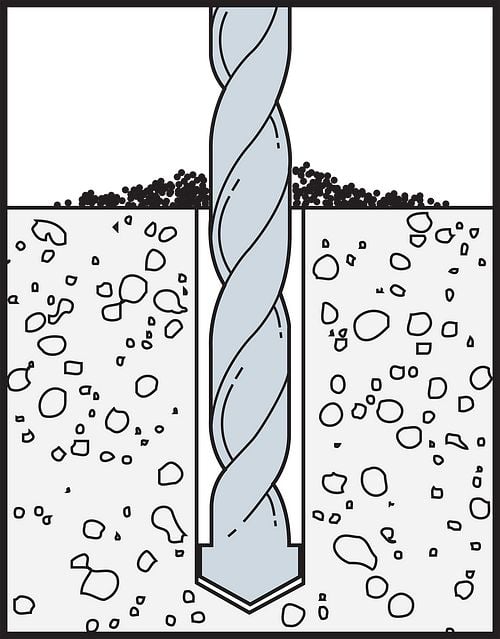

The Strong-Tie Sleeve Anchor comes in a variety of finishes with various head types making it useful in a wide range of applications. Its professional design makes for an effortless installation. Simply use a 5/8” wide carbide drill bit to create a hole in your solid base material. While overhead installations do not require a clean hole, all other fixtures will. Blow the pre-drilled hole clean with compressed air and drive the anchor into the sleeve until the washer and nut are tight against the fixture. Tighten pieces to the required installation torque. A 3/4” wrench is useful for this application. The Strong-Tie Sleeve-All Sleeve Anchor comes as a box quantity of 20. The dependable anchoring system you’re looking for is just a click away; order today at Nail Gun Depot.

WARNING: California residents, this item qualifies for Proposition 65 legislation.
Related Fasteners Specifications
  • Resources

    Technical Data

    Design Information

  • Box Count 20
  • SKU SL62214C
  • UPC 044315959301
  • Fastener Length 2-1/4"
  • Application Type Concrete
  • Brand Simpson Strong-Tie
  • Condition New
  • Tool Compatibility Carbide Drill Bit & Driver (Universal)
  • Fastener Treatment Zinc Plated
  • Product Color Silver
  • Fastener Material Carbon Steel
  • Fastener Head Type Rod Coupler
  • Fastener Head Diameter 5/8"
  • Rating/Certification Provided DOT Listings & Meets Requirements of Federal Specification A-A-1922A
  • Drive Type Hex
  • Manufacturer's Warranty Limited
  • Product Type Mechanical Anchors
  • Special Offer Available No
  • Series Sleeve-All Sleeve Anchor
